Bilstein 47-252349 B14 PSS Suspension Kit
BestB14 coilovers

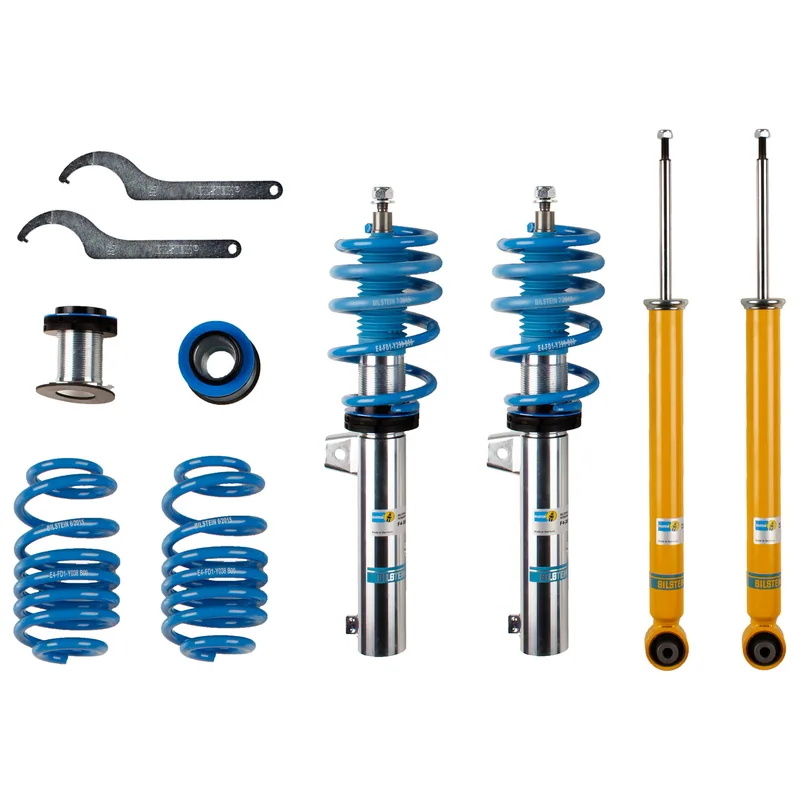

Bilstein 47-252349 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Germany
Box
Ships in Bilstein's own box (about 60 × 30 × 30 cm, 24.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

14 vehicles, newest years first

Audi TT Quattro (AWD)2016–2021BaseFront and rearAll
  • Front Lowered Height: 15-40mm, up to 1040kg Axle Load
  • Rear Lowered Height: 15-35mm, up to 870kg Axle Load
  • Without Electronic Suspension
  • Check which applies
Audi TT RS Quattro (AWD)2018–2021BaseFront and rearAll
  • Front Lowered Height: 15-40mm, up to 1070kg Axle Load
  • Rear Lowered Height: 15-35mm, up to 870kg Axle Load
  • Without Electronic Suspension
  • Check which applies
Audi TTS Quattro (AWD)2018–2021BaseFront and rearAll
  • Front Lowered Height: 15-40mm, up to 1070kg Axle Load
  • Rear Lowered Height: 15-35mm, up to 870kg Axle Load
  • Without Electronic Suspension
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Monotube
Finish
Dampers: Zinc Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in)
400
Front Main Spring Type
Progressive
Rear Main Spring Rate (lbs/in)
423
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
N/A
Rear Tender Spring Rate (lbs/in)
N/A
Spanner Wrench Set
E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)
Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
