BestB14 coilovers

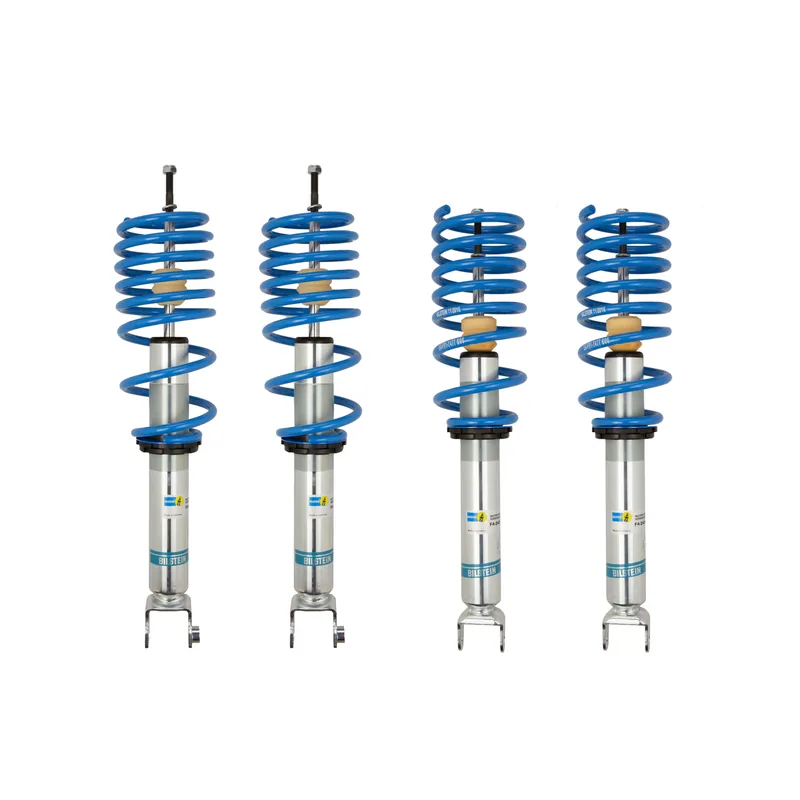

Bilstein 47-249622 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 58 × 29 × 29 cm, 21.1 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

65 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Fiat 124 Spider	Years	2019–2020	Submodels	Abarth, Classica, Lusso, Urbana	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-60mm, up to 695kg Axle Load Rear Lowered Height: 30-60mm, up to 640kg Axle Load Check which applies
Fiat 124 Spider	Years	2017–2018	Submodels	Abarth, Classica, Lusso	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-60mm, up to 695kg Axle Load Rear Lowered Height: 30-60mm, up to 640kg Axle Load Check which applies
Mazda MX-5 Miata	Years	2025	Submodels	35th Anniversary, Club, Grand Touring, RF Club, RF Grand Touring, Sport	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-60mm, up to 695kg Axle Load Rear Lowered Height: 30-60mm, up to 640kg Axle Load Check which applies
Mazda MX-5 Miata	Years	2021–2024	Submodels	Club, Grand Touring, RF Club, RF Grand Touring, Sport	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-60mm, up to 695kg Axle Load Rear Lowered Height: 30-60mm, up to 640kg Axle Load Check which applies
Mazda MX-5 Miata	Years	2020	Submodels	100th Anniversary Special Edition, Club, Grand Touring, RF 100th Anniversary Special Edition, RF Club, RF Grand Touring, Sport	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-60mm, up to 695kg Axle Load Rear Lowered Height: 30-60mm, up to 640kg Axle Load Check which applies
Mazda MX-5 Miata	Years	2017–2019	Submodels	Club, Grand Touring, RF Club, RF Grand Touring, Sport	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-60mm, up to 695kg Axle Load Rear Lowered Height: 30-60mm, up to 640kg Axle Load Check which applies
Mazda MX-5 Miata	Years	2016	Submodels	Club, Grand Touring, Sport	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-60mm, up to 695kg Axle Load Rear Lowered Height: 30-60mm, up to 640kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Blue
Front Main Spring Rate (lbs/in): 343
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 229
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
