BestB14 coilovers

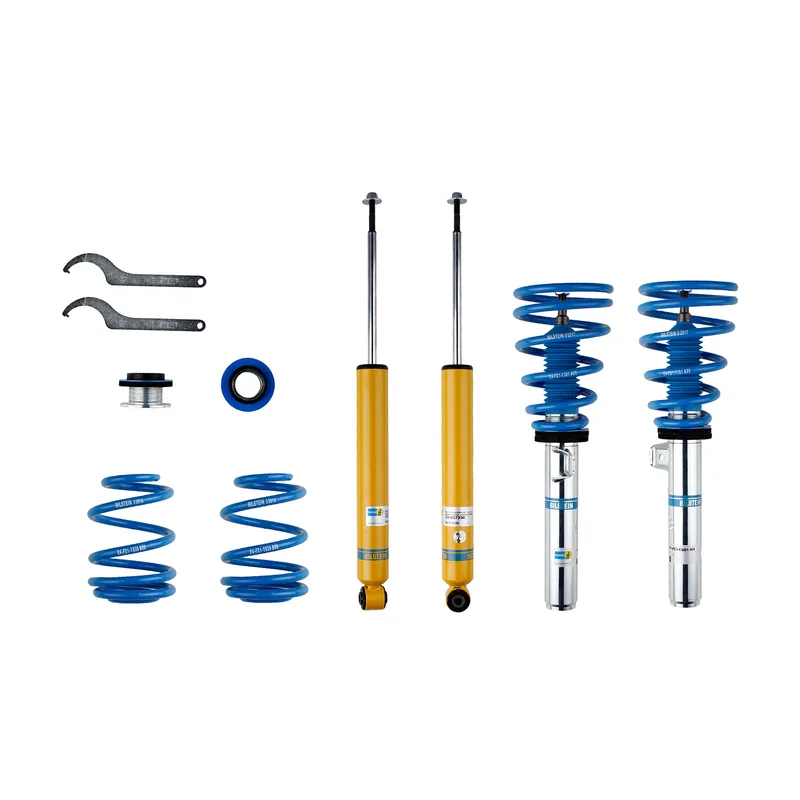

Bilstein 47-249134 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 47-126848
Country of origin: Germany
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 23.4 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

28 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
BMW 323Ci	Years	2000	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1030kg Axle Load Rear Lowered Height: 25-40mm, up to 1190kg Axle Load Check which applies
BMW 323i	Years	2000	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1030kg Axle Load Rear Lowered Height: 25-40mm, up to 1190kg Axle Load Check which applies
BMW 323i	Years	1999	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Body code: E46 Front Lowered Height: 35-50mm, up to 1030kg Axle Load Rear Lowered Height: 25-40mm, up to 1190kg Axle Load Check which applies
BMW 325Ci	Years	2001–2006	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1030kg Axle Load Rear Lowered Height: 25-40mm, up to 1190kg Axle Load Check which applies
BMW 325i	Years	2001–2005	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1030kg Axle Load Rear Lowered Height: 25-40mm, up to 1190kg Axle Load Check which applies
BMW 328Ci	Years	2000	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1030kg Axle Load Rear Lowered Height: 25-40mm, up to 1190kg Axle Load Check which applies
BMW 328i	Years	2000	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1030kg Axle Load Rear Lowered Height: 25-40mm, up to 1190kg Axle Load Check which applies
BMW 328i	Years	1999	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Body code: E46 Front Lowered Height: 35-50mm, up to 1030kg Axle Load Rear Lowered Height: 25-40mm, up to 1190kg Axle Load Check which applies
BMW 330Ci	Years	2001–2006	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1030kg Axle Load Rear Lowered Height: 25-40mm, up to 1190kg Axle Load Check which applies
BMW 330i	Years	2001–2005	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1030kg Axle Load Rear Lowered Height: 25-40mm, up to 1190kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc/Springs: Blue
Front Main Spring Rate (lbs/in): 313
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 399
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
