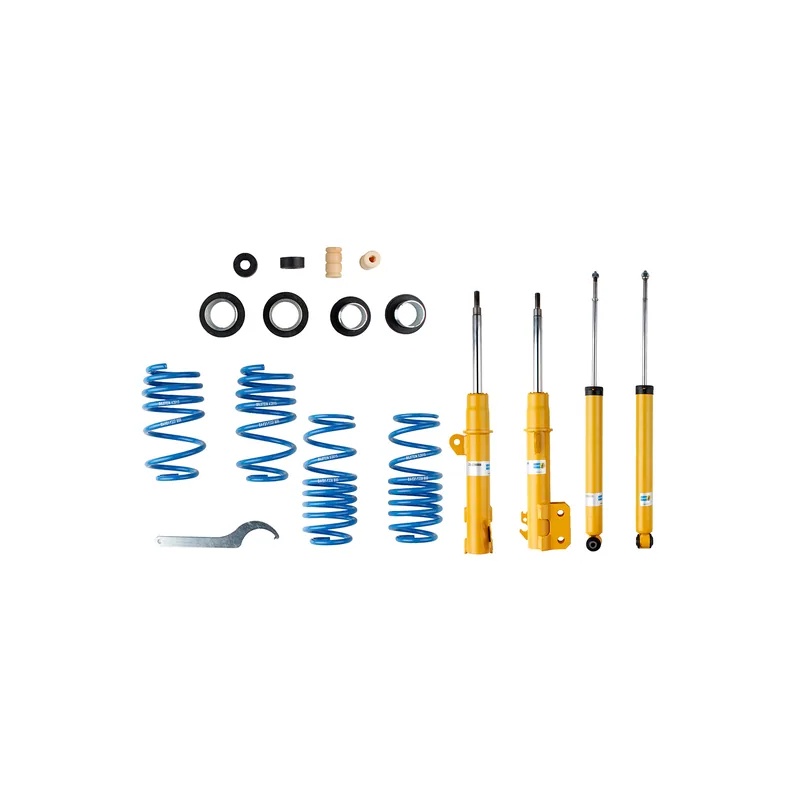

Bilstein 47-237834 B14 PSS Suspension Kit
BestB14 coilovers

Bilstein 47-237834 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Germany
Box
Ships in Bilstein's own box (about 58 × 29 × 29 cm, 21.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

26 vehicles, newest years first

Toyota Yaris2012–2017L, LE, SEFront and rearAll
  • Front Lowered Height: 20-40mm, up to 895kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 825kg Axle Load
  • Check which applies
Toyota Yaris2010–2011BaseFront and rearAll
  • Front Lowered Height: 20-40mm, up to 895kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 825kg Axle Load
  • Check which applies
Toyota Yaris2007–2009Base, SFront and rearAll
  • Front Lowered Height: 20-40mm, up to 895kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 825kg Axle Load
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Twintube
Finish
Dampers: Zinc Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in)
285
Front Main Spring Type
Progressive
Rear Main Spring Rate (lbs/in)
209
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
N/A
Rear Tender Spring Rate (lbs/in)
N/A
Chassis Code
XP130
Spanner Wrench Set
E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)
Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
