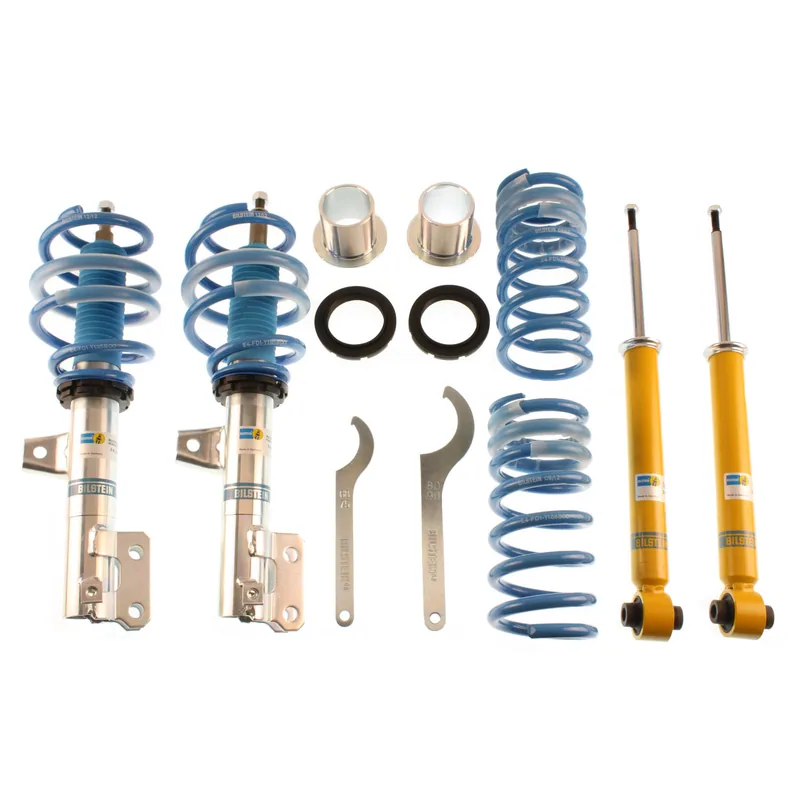

Bilstein 47-193680 B14 PSS Suspension Kit
BestB14 coilovers

Bilstein 47-193680 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
Germany
Box
Ships in Bilstein's own box (about 60 × 30 × 30 cm, 24.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

37 vehicles, newest years first

Hyundai Genesis Coupe2015–20163.8, 3.8 R-Spec, 3.8 UltimateFront and rearAll
  • Front Lowered Height: 20-30mm, up to 1000kg Axle Load
  • Rear Lowered Height: 10-30mm, up to 1050kg Axle Load
  • Check which applies
Hyundai Genesis Coupe20142.0T, 2.0T Premium, 2.0T R-Spec, 3.8 Grand Touring, 3.8 R-Spec, 3.8 UltimateFront and rearAll
  • Front Lowered Height: 20-30mm, up to 1000kg Axle Load
  • Rear Lowered Height: 10-30mm, up to 1050kg Axle Load
  • Check which applies
Hyundai Genesis Coupe2011–20132.0T, 2.0T Premium, 2.0T R-Spec, 3.8 Grand Touring, 3.8 R-Spec, 3.8 TrackFront and rearAll
  • Front Lowered Height: 20-30mm, up to 1000kg Axle Load
  • Rear Lowered Height: 10-30mm, up to 1050kg Axle Load
  • Check which applies
Hyundai Genesis Coupe20102.0T, 2.0T Premium, 2.0T R-Spec, 2.0T Track, 3.8, 3.8 Grand Touring, 3.8 TrackFront and rearAll
  • Front Lowered Height: 20-30mm, up to 1000kg Axle Load
  • Rear Lowered Height: 10-30mm, up to 1050kg Axle Load
  • Requires model year 2011 front sway bar links
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Monotube
Finish
Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in)
342
Front Main Spring Type
Progressive
Rear Main Spring Rate (lbs/in)
514
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
N/A
Rear Tender Spring Rate (lbs/in)
N/A
Spanner Wrench Set
E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)
Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
