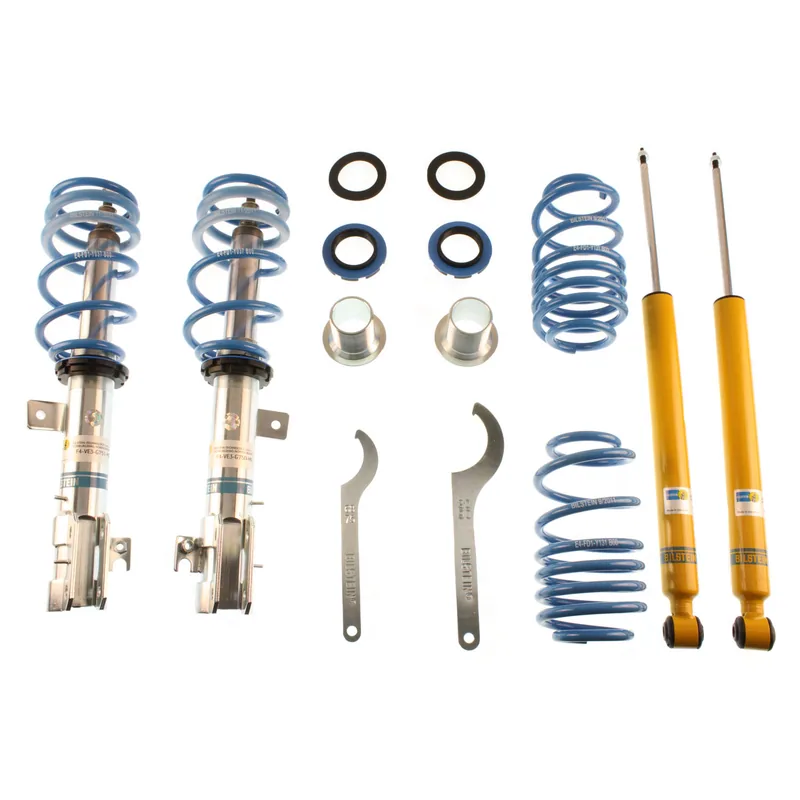

Bilstein 47-167490 B14 PSS Suspension Kit

Bilstein 47-167490 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Country of origin
Germany
Box
Ships in Bilstein's own box (about 56 × 28 × 28 cm, 20.2 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

33 vehicles, newest years first

Ford Fiesta2019S, SE, ST LineFront and rearAll
  • Front Lowered Height: 25-40mm, up to 850kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 765kg Axle Load
  • Check which applies
Ford Fiesta2013–2018S, SE, TitaniumFront and rearAll
  • Front Lowered Height: 25-40mm, up to 850kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 765kg Axle Load
  • Check which applies
Ford Fiesta2011–2012SESFront and rearAll
  • Front Lowered Height: 25-40mm, up to 850kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 765kg Axle Load
  • Check which applies
Ford Fiesta2011–2012SEFront and rearHatchback
  • Front Lowered Height: 25-40mm, up to 850kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 765kg Axle Load
  • Check which applies
Mazda 22011–2014Sport, TouringFront and rearAll
  • Front Lowered Height: 25-40mm, up to 850kg Axle Load
  • Rear Lowered Height: 20-40mm, up to 765kg Axle Load
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Monotube
Finish
Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in)
274
Front Main Spring Type
Progressive
Rear Main Spring Rate (lbs/in)
228
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
N/A
Rear Tender Spring Rate (lbs/in)
N/A
Spanner Wrench Set
E4-XS1-Z001A00

Installation & warranty

100% genuine Bilstein, from authorized North American distribution.
