BestB14 coilovers

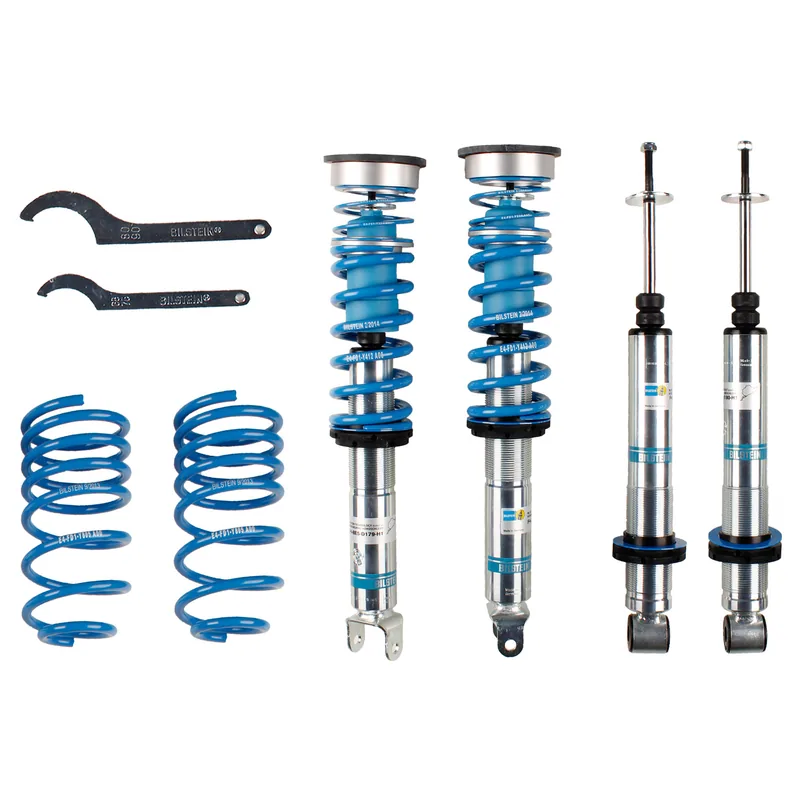

Bilstein 47-131811 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 56 × 28 × 28 cm, 20.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

38 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Mazda MX-5 Miata	Years	2015	Submodels	25th Anniversary Edition, Club, Grand Touring, Sport	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 680kg Axle Load Rear Lowered Height: 30-50mm, up to 705kg Axle Load Check which applies
Mazda MX-5 Miata	Years	2013–2014	Submodels	Club, Grand Touring, Sport	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 680kg Axle Load Rear Lowered Height: 30-50mm, up to 705kg Axle Load Check which applies
Mazda MX-5 Miata	Years	2011–2012	Submodels	Grand Touring, Special Edition, Sport, Touring	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 680kg Axle Load Rear Lowered Height: 30-50mm, up to 705kg Axle Load Check which applies
Mazda MX-5 Miata	Years	2010	Submodels	Grand Touring, Sport, Touring	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 680kg Axle Load Rear Lowered Height: 30-50mm, up to 705kg Axle Load Check which applies
Mazda MX-5 Miata	Years	2007–2009	Submodels	Grand Touring, SV, Sport, Touring	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 680kg Axle Load Rear Lowered Height: 30-50mm, up to 705kg Axle Load Check which applies
Mazda MX-5 Miata	Years	2006	Submodels	Base, Club Spec, Grand Touring, Sport, Touring	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 680kg Axle Load Rear Lowered Height: 30-50mm, up to 705kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Blue
Front Main Spring Rate (lbs/in): 371
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 239
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): 79
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
