BestB14 coilovers

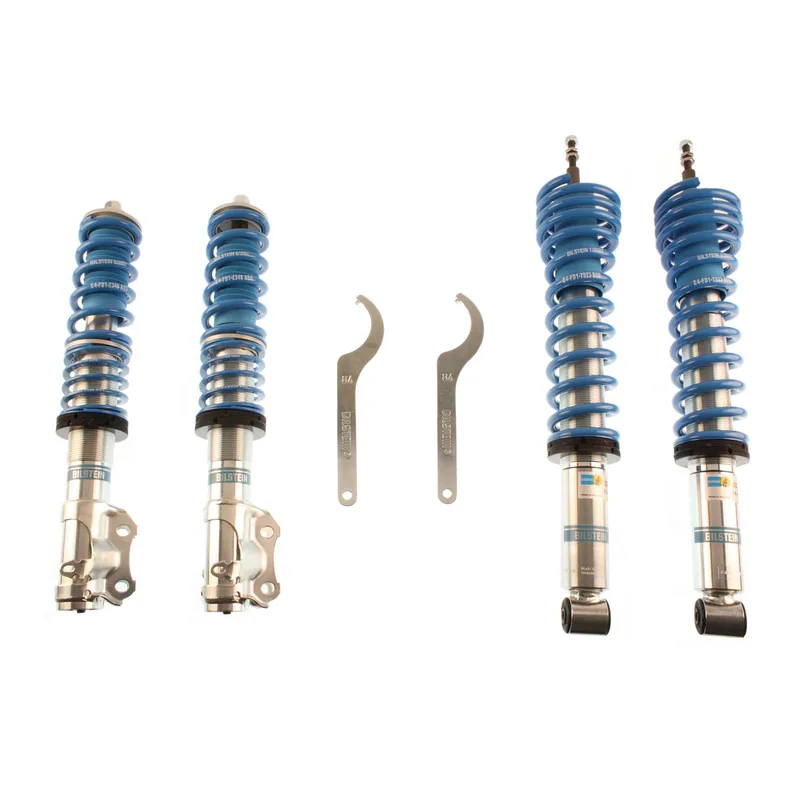

Bilstein 47-124844 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 62 × 31 × 31 cm, 25.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

91 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Volkswagen Cabrio	Years	2001–2002	Submodels	GL, GLS, GLX	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 990kg Axle Load Rear Lowered Height: 10-30mm, up to 890kg Axle Load Check which applies
Volkswagen Cabrio	Years	2000	Submodels	GL, GLS	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 990kg Axle Load Rear Lowered Height: 10-30mm, up to 890kg Axle Load Check which applies
Volkswagen Cabrio	Years	1998–1999	Submodels	Base, GLS	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 990kg Axle Load Rear Lowered Height: 10-30mm, up to 890kg Axle Load Check which applies
Volkswagen Cabrio	Years	1997	Submodels	Base, High Line	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 990kg Axle Load Rear Lowered Height: 10-30mm, up to 890kg Axle Load Check which applies
Volkswagen Cabrio	Years	1995–1996	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 990kg Axle Load Rear Lowered Height: 10-30mm, up to 890kg Axle Load Check which applies
Volkswagen Corrado	Years	1993–1994	Submodels	SLC	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 950kg Axle Load Rear Lowered Height: 0-10mm, up to 710kg Axle Load Check which applies
Volkswagen Corrado	Years	1992	Submodels	G60, SLC	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 950kg Axle Load Rear Lowered Height: 0-10mm, up to 710kg Axle Load Wheel spacers may be required for some wheel/tire combinations Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 950kg Axle Load Rear Lowered Height: 0-10mm, up to 710kg Axle Load Check which applies
Volkswagen Corrado	Years	1990–1991	Submodels	G60	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 950kg Axle Load Rear Lowered Height: 0-10mm, up to 710kg Axle Load Wheel spacers may be required for some wheel/tire combinations Check which applies
Volkswagen Golf	Years	1999	Submodels	GL	Position	Front and rear	Drive / body / engine	All	Notes	Body code: A3 Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1999	Submodels	Wolfsburg Edition	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1998	Submodels	GL, GTI, GTI VR6, K2	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1997	Submodels	GL, GTI, GTI VR6, Jazz, K2, Trek	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1996	Submodels	GL, GTI, GTI VR6	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1995	Submodels	Celebration Edition, City, GL, GTI VR6, Sport	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1994	Submodels	GL, GTI, Limited Edition	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1993	Submodels	GL	Position	Front and rear	Drive / body / engine	All	Notes	Body code: A3 Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1990–1992	Submodels	GL	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1989	Submodels	Base, GL	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1988	Submodels	Base, GL, GT	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1987	Submodels	GL, GT, GTI	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Golf	Years	1985–1986	Submodels	Base, GTI	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 30-50mm, up to 840kg Axle Load Rear Lowered Height: 10-30mm, up to 740kg Axle Load Check which applies
Volkswagen Jetta	Years	1999	Submodels	GLX	Position	Front and rear	Drive / body / engine	All	Notes	Body code: A3 Requires 15mm wheel spacers Front Lowered Height: 25-50mm, up to 840kg Axle Load Rear Lowered Height: 20-50mm, up to 890kg Axle Load Check which applies
Volkswagen Jetta	Years	1999	Submodels	Wolfsburg Edition	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 25-50mm, up to 840kg Axle Load Rear Lowered Height: 20-50mm, up to 890kg Axle Load Check which applies
Volkswagen Jetta	Years	1998	Submodels	GL, GLS, GLX, GT, K2, TDI, Wolfsburg Edition	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 25-50mm, up to 840kg Axle Load Rear Lowered Height: 20-50mm, up to 890kg Axle Load Check which applies
Volkswagen Jetta	Years	1997	Submodels	GL, GLS, GLX, GT, Jazz, TDI	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 25-50mm, up to 840kg Axle Load Rear Lowered Height: 20-50mm, up to 890kg Axle Load Check which applies
Volkswagen Jetta	Years	1996	Submodels	GL, GLS, GLX, Trek, Wolfsburg Edition	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 25-50mm, up to 840kg Axle Load Rear Lowered Height: 20-50mm, up to 890kg Axle Load Check which applies
Volkswagen Jetta	Years	1995	Submodels	Celebration Edition, City, GL, GLS, GLX	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 25-50mm, up to 840kg Axle Load Rear Lowered Height: 20-50mm, up to 890kg Axle Load Check which applies
Volkswagen Jetta	Years	1994	Submodels	GL, GLS, GLX, Limited Edition	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 25-50mm, up to 840kg Axle Load Rear Lowered Height: 20-50mm, up to 890kg Axle Load Check which applies
Volkswagen Jetta	Years	1993	Submodels	GL	Position	Front and rear	Drive / body / engine	All	Notes	Requires 15mm wheel spacers Front Lowered Height: 25-50mm, up to 840kg Axle Load Rear Lowered Height: 20-50mm, up to 890kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Blue
Front Main Spring Rate (lbs/in): 405
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 343
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): 114
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
