BestB14 coilovers

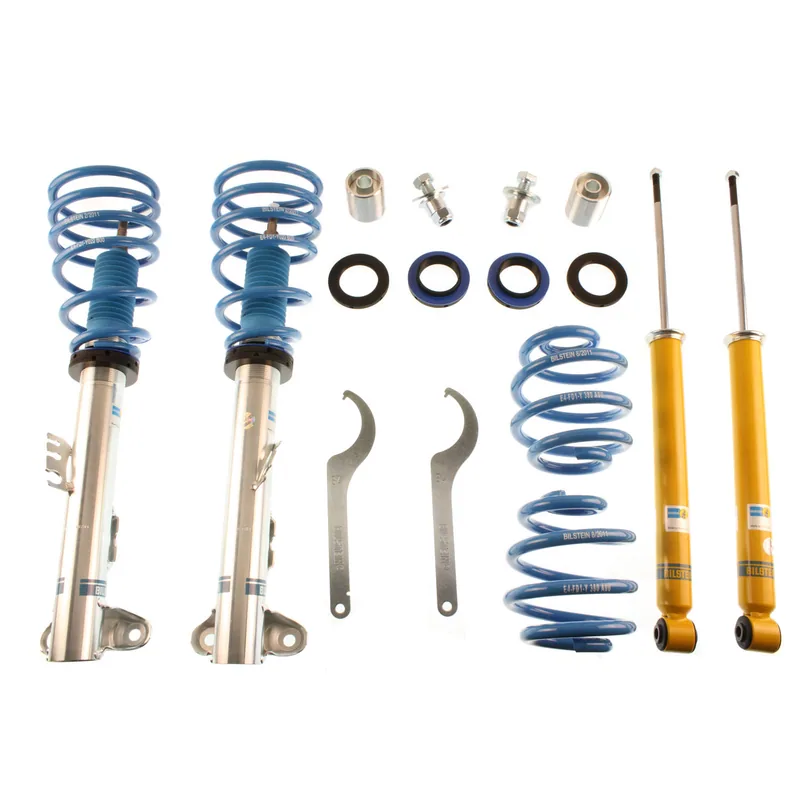

Bilstein 47-124813 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 24.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

33 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
BMW 318i	Years	1993–1998	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 318i	Years	1992	Submodels	Base	Position	Front and rear	Drive / body / engine	Sedan	Notes	Body code: E36 Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 318is	Years	1993–1997	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 318is	Years	1992	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Body code: E36 Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 323i	Years	1999	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Body code: E36 Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 323i	Years	1998	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 323is	Years	1998–1999	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 325i	Years	1994–1995	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 325i	Years	1992–1993	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Body code: E36 Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 325is	Years	1992–1995	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 328i	Years	1999	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Body code: E36 Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 328i	Years	1996–1998	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies
BMW 328is	Years	1996–1999	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 930kg Axle Load Rear Lowered Height: 20-40mm, up to 1130kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 400
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 428
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
