BestB14 coilovers

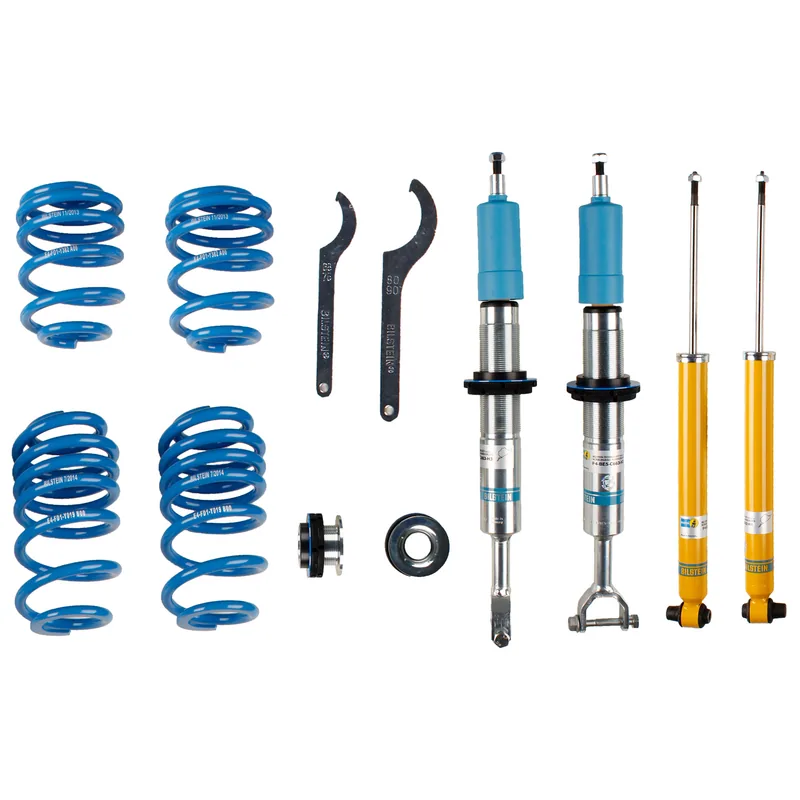

Bilstein 47-124806 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 62 × 31 × 31 cm, 26.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

27 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Audi A6	Years	1998–2004	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 1205kg Axle Load Rear Lowered Height: 35-55mm, up to 1130kg Axle Load Without Self-Leveling Suspension Check which applies
Volkswagen Passat	Years	2005	Submodels	GL, GL TDI, GLS, GLX	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 1230kg Axle Load Rear Lowered Height: 35-55mm, up to 1200kg Axle Load Check which applies
Volkswagen Passat	Years	2003–2004	Submodels	GL, GLS, GLX	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 1230kg Axle Load Rear Lowered Height: 35-55mm, up to 1200kg Axle Load Check which applies
Volkswagen Passat	Years	2000–2002	Submodels	GLS, GLX	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 1230kg Axle Load Rear Lowered Height: 35-55mm, up to 1200kg Axle Load Check which applies
Volkswagen Passat	Years	1999	Submodels	GLS	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 1230kg Axle Load Rear Lowered Height: 35-55mm, up to 1200kg Axle Load Check which applies
Volkswagen Passat	Years	1999	Submodels	GLX	Position	Front and rear	Drive / body / engine	FWD	Notes	Front Lowered Height: 35-55mm, up to 1230kg Axle Load Rear Lowered Height: 35-55mm, up to 1200kg Axle Load Check which applies
Volkswagen Passat	Years	1998	Submodels	GLS, GLX	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 1230kg Axle Load Rear Lowered Height: 35-55mm, up to 1200kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 457
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 360
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
