BestB14 coilovers

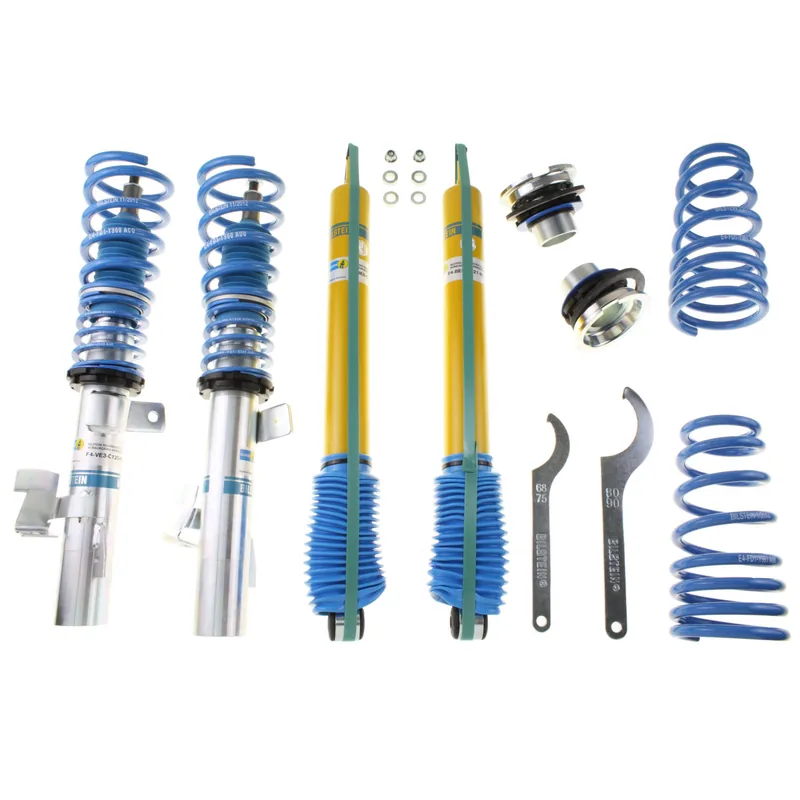

Bilstein 47-121225 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 60 × 30 × 30 cm, 23.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

61 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Mazda 3	Years	2007–2013	Submodels	Mazdaspeed, S, i	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 10-25mm, up to 1100kg Axle Load Rear Lowered Height: 5-25mm, up to 1090kg Axle Load Front Lowered Height: 25-40mm, up to 1100kg Axle Load Rear Lowered Height: 20-40mm, up to 1090kg Axle Load Check which applies
Mazda 3	Years	2006	Submodels	S, i	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-40mm, up to 1100kg Axle Load Rear Lowered Height: 20-40mm, up to 1090kg Axle Load Check which applies
Mazda 3	Years	2005	Submodels	S, SP23, i	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-40mm, up to 1100kg Axle Load Rear Lowered Height: 20-40mm, up to 1090kg Axle Load Check which applies
Mazda 3	Years	2004	Submodels	S, i	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 25-40mm, up to 1100kg Axle Load Rear Lowered Height: 20-40mm, up to 1090kg Axle Load Check which applies
Volvo C30	Years	2012–2013	Submodels	T5, T5 R-Design	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-30mm, up to 1100kg Axle Load Rear Lowered Height: 10-20mm, up to 1090kg Axle Load Check which applies
Volvo C30	Years	2008–2011	Submodels	T5	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-30mm, up to 1100kg Axle Load Rear Lowered Height: 10-20mm, up to 1090kg Axle Load Check which applies
Volvo S40	Years	2011	Submodels	T5	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1100kg Axle Load Rear Lowered Height: 35-50mm, up to 1090kg Axle Load Check which applies
Volvo S40	Years	2006–2010	Submodels	2.4i	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1100kg Axle Load Rear Lowered Height: 35-50mm, up to 1090kg Axle Load Check which applies
Volvo S40	Years	2005–2009	Submodels	T5	Position	Front and rear	Drive / body / engine	FWD	Notes	Front Lowered Height: 35-50mm, up to 1100kg Axle Load Rear Lowered Height: 35-50mm, up to 1090kg Axle Load Check which applies
Volvo S40	Years	2005	Submodels	i	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1100kg Axle Load Rear Lowered Height: 35-50mm, up to 1090kg Axle Load Check which applies
Volvo S40	Years	2004	Submodels	T5, i	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-50mm, up to 1100kg Axle Load Rear Lowered Height: 35-50mm, up to 1090kg Axle Load Check which applies
Volvo V50	Years	2011	Submodels	T5	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 1100kg Axle Load Rear Lowered Height: 20-40mm, up to 1090kg Axle Load Check which applies
Volvo V50	Years	2006–2010	Submodels	2.4i	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 1100kg Axle Load Rear Lowered Height: 20-40mm, up to 1090kg Axle Load Check which applies
Volvo V50	Years	2005–2008	Submodels	T5	Position	Front and rear	Drive / body / engine	FWD	Notes	Front Lowered Height: 20-40mm, up to 1100kg Axle Load Rear Lowered Height: 20-40mm, up to 1090kg Axle Load Check which applies
Volvo V50	Years	2005	Submodels	i	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 20-40mm, up to 1100kg Axle Load Rear Lowered Height: 20-40mm, up to 1090kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in): 377
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 378
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): 114
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
