BestB14 coilovers

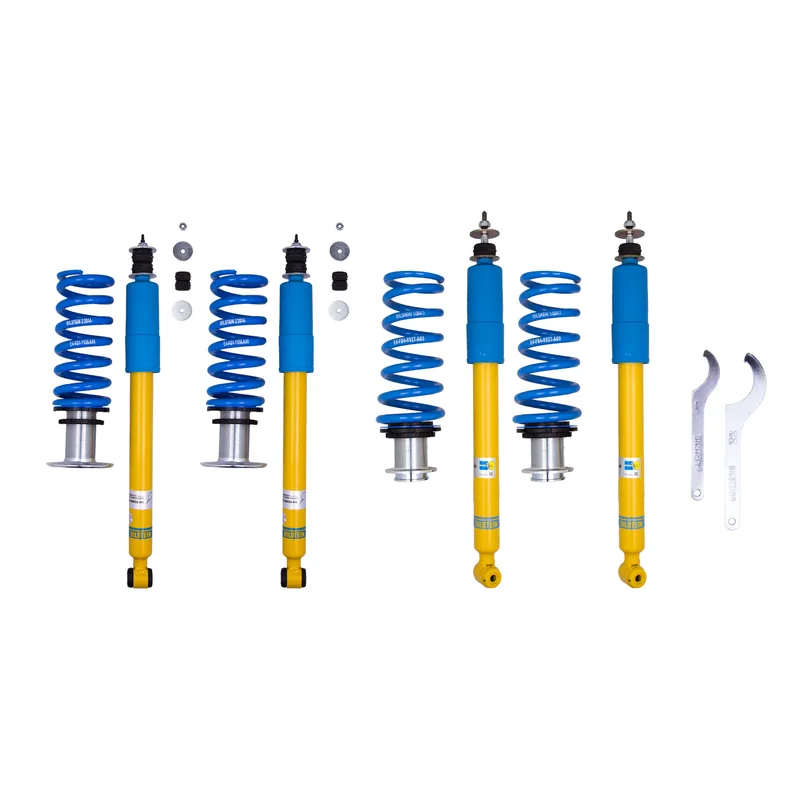

Bilstein 47-119536 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 58 × 29 × 29 cm, 22.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

24 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Chrysler Crossfire	Years	2008	Submodels	Limited	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 905kg Axle Load Rear Lowered Height: 10-30mm, up to 850kg Axle Load Check which applies
Chrysler Crossfire	Years	2007	Submodels	Base, Limited	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 905kg Axle Load Rear Lowered Height: 10-30mm, up to 850kg Axle Load Check which applies
Chrysler Crossfire	Years	2005–2006	Submodels	Base, Limited, SRT-6	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 905kg Axle Load Rear Lowered Height: 10-30mm, up to 850kg Axle Load Check which applies
Chrysler Crossfire	Years	2004	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 15-35mm, up to 905kg Axle Load Rear Lowered Height: 10-30mm, up to 850kg Axle Load Check which applies
Mercedes-Benz SLK230	Years	1998–2004	Submodels	Kompressor	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 905kg Axle Load Rear Lowered Height: 35-55mm, up to 850kg Axle Load Check which applies
Mercedes-Benz SLK32 AMG	Years	2002–2004	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 905kg Axle Load Rear Lowered Height: 35-55mm, up to 850kg Axle Load Check which applies
Mercedes-Benz SLK320	Years	2001–2004	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 35-55mm, up to 905kg Axle Load Rear Lowered Height: 35-55mm, up to 850kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Yellow/Springs: Blue
Front Main Spring Rate (lbs/in): 486
Front Main Spring Type: Linear
Rear Main Spring Rate (lbs/in): 565
Rear Main Spring Type: Linear
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
