BestB14 coilovers

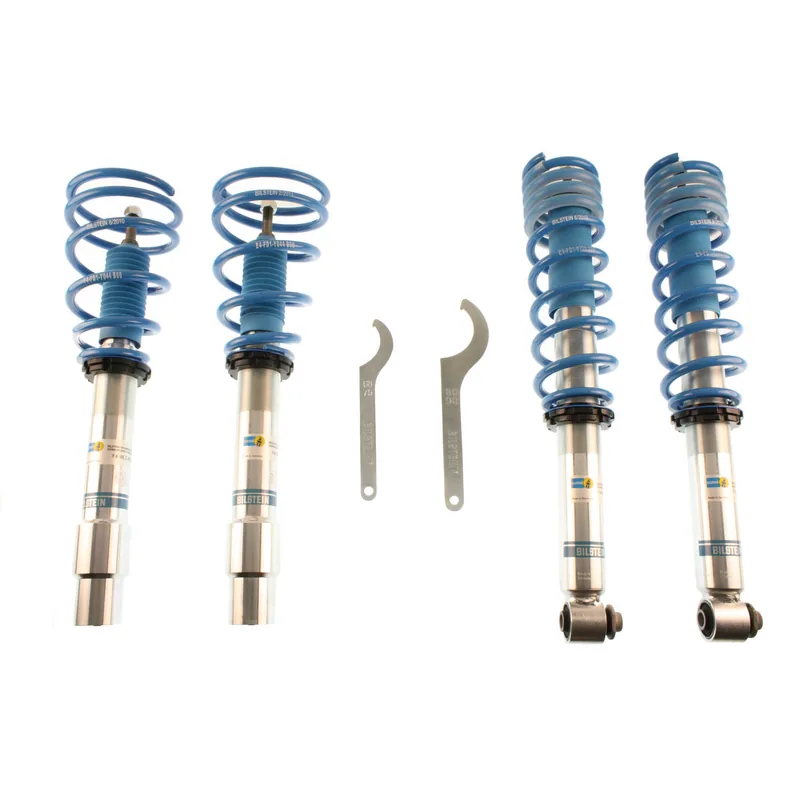

Bilstein 47-111165 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 62 × 31 × 31 cm, 25.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

21 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
BMW 525i	Years	2004–2007	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 1070kg Axle Load Rear Lowered Height: 30-50mm, up to 1300kg Axle Load Without Electronic or Self-Leveling Suspension Check which applies
BMW 528i	Years	2008–2010	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 1070kg Axle Load Rear Lowered Height: 30-50mm, up to 1300kg Axle Load Without Electronic or Self-Leveling Suspension Check which applies
BMW 530i	Years	2004–2007	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 1070kg Axle Load Rear Lowered Height: 30-50mm, up to 1300kg Axle Load Without Electronic or Self-Leveling Suspension Check which applies
BMW 535i	Years	2008–2010	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 1070kg Axle Load Rear Lowered Height: 30-50mm, up to 1300kg Axle Load Without Electronic or Self-Leveling Suspension Check which applies
BMW 545i	Years	2004–2005	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 1070kg Axle Load Rear Lowered Height: 30-50mm, up to 1300kg Axle Load Without Electronic or Self-Leveling Suspension Check which applies
BMW 550i	Years	2006–2010	Submodels	Base	Position	Front and rear	Drive / body / engine	All	Notes	Front Lowered Height: 30-50mm, up to 1070kg Axle Load Rear Lowered Height: 30-50mm, up to 1300kg Axle Load Without Electronic or Self-Leveling Suspension Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Blue
Front Main Spring Rate (lbs/in): 313
Front Main Spring Type: Progressive
Rear Main Spring Rate (lbs/in): 291
Rear Main Spring Type: Progressive
Front Tender Spring Rate (lbs/in): N/A
Rear Tender Spring Rate (lbs/in): N/A
Spanner Wrench Set: E4-XS1-Z001A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited 5-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
