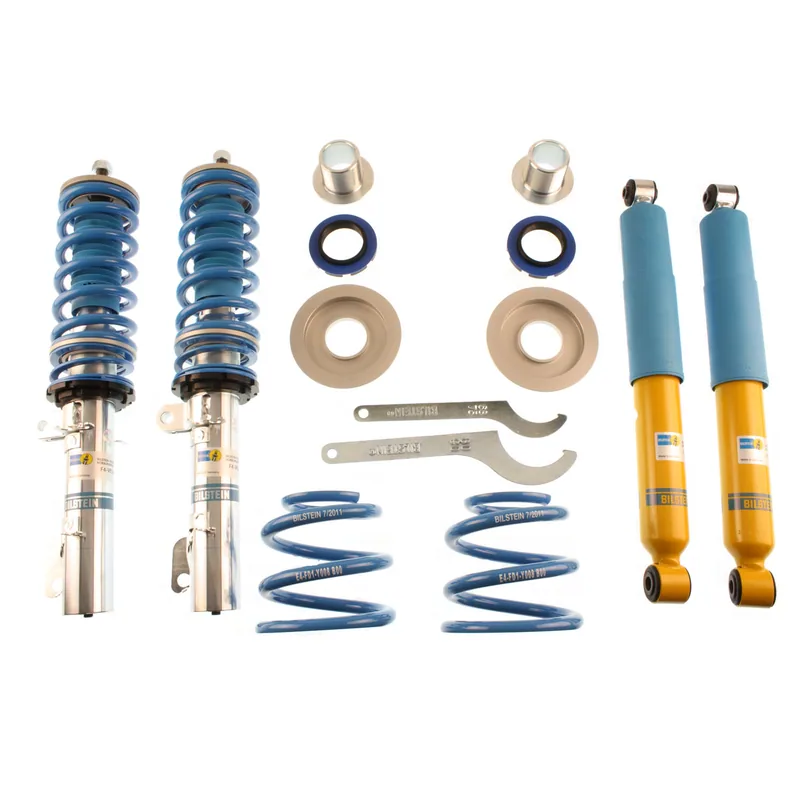

Bilstein 47-080416 B14 PSS Suspension Kit

Bilstein 47-080416 B14 PSS Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Country of origin
Germany
Box
Ships in Bilstein's own box (about 58 × 29 × 29 cm, 20.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

10 vehicles, newest years first

Audi TT Quattro (AWD)2006Base, Special EditionFront and rearAll
  • Front Lowered Height: 30-50mm, up to 1110kg Axle Load
  • Rear Lowered Height: 30-50mm, up to 920kg Axle Load
  • Check which applies
Audi TT Quattro (AWD)2003–2005BaseFront and rearAll
  • Front Lowered Height: 30-50mm, up to 1110kg Axle Load
  • Rear Lowered Height: 30-50mm, up to 920kg Axle Load
  • Check which applies
Audi TT Quattro (AWD)2002ALMS Edition, BaseFront and rearAll
  • Front Lowered Height: 30-50mm, up to 1110kg Axle Load
  • Rear Lowered Height: 30-50mm, up to 920kg Axle Load
  • Check which applies
Audi TT Quattro (AWD)2000–2001BaseFront and rearAll
  • Front Lowered Height: 30-50mm, up to 1110kg Axle Load
  • Rear Lowered Height: 30-50mm, up to 920kg Axle Load
  • Check which applies
Volkswagen R322004BaseFront and rearAll
  • Front Lowered Height: 30-50mm, up to 1110kg Axle Load
  • Rear Lowered Height: 30-50mm, up to 920kg Axle Load
  • Check which applies

Specifications

As Bilstein publishes them.

Internal Design
Monotube
Finish
Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
Front Main Spring Rate (lbs/in)
371
Front Main Spring Type
Linear
Rear Main Spring Rate (lbs/in)
673
Rear Main Spring Type
Progressive
Front Tender Spring Rate (lbs/in)
143
Rear Tender Spring Rate (lbs/in)
N/A
Spanner Wrench Set
E4-XS1-Z001A00

Installation & warranty

100% genuine Bilstein, from authorized North American distribution.
