BetterB8 5100

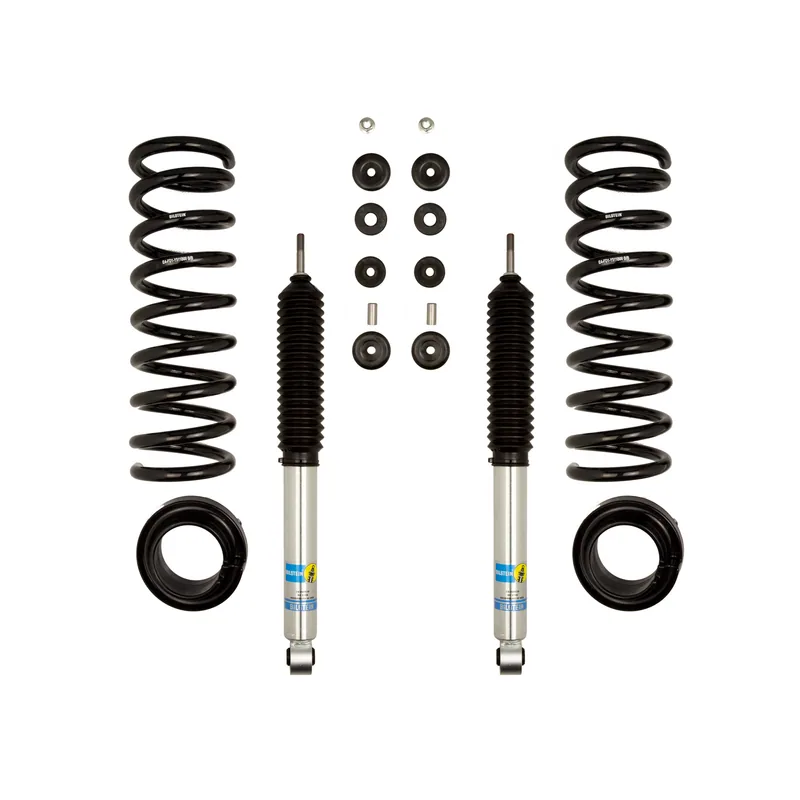

Bilstein 46-268655 B8 5112 Lift & Leveling Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 62 × 31 × 31 cm, 27.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

89 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ram 2500	Years	2026	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman, Warlock	Position	Front	Drive / body / engine	4WD · V8 6.4L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2023–2025	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front	Drive / body / engine	4WD · V8 6.4L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2022	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman	Position	Front	Drive / body / engine	4WD · V8 6.4L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Tradesman	Position	Front	Drive / body / engine	4WD · V8 6.4L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2019–2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Tradesman	Position	Front	Drive / body / engine	4WD · V8 6.4L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2018	Submodels	Big Horn, SLT, Tradesman	Position	Front	Drive / body / engine	4WD · V8 5.7L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2016–2018	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, SLT, Tradesman	Position	Front	Drive / body / engine	4WD · V8 6.4L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2016–2017	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, SLT, Tradesman	Position	Front	Drive / body / engine	4WD · V8 5.7L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2014–2016	Submodels	Outdoorsman	Position	Front	Drive / body / engine	V8 5.7L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2014–2016	Submodels	Outdoorsman	Position	Front	Drive / body / engine	V8 6.4L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2014–2015	Submodels	Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, Tradesman	Position	Front	Drive / body / engine	4WD · V8 5.7L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies
Ram 2500	Years	2014–2015	Submodels	Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, Tradesman	Position	Front	Drive / body / engine	4WD · V8 6.4L	Notes	Provides 2" Front Lift Adjustable track bar recommended Check which applies

Specifications

As Bilstein publishes them.

Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: N/A
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Dampers: Zinc Plated/Springs: Black
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Front Main Spring Rate (lbs/in): 408

Installation & warranty

Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
