Bilstein 46-241634 B8 5112 Lift & Leveling Kit
BetterB8 5100

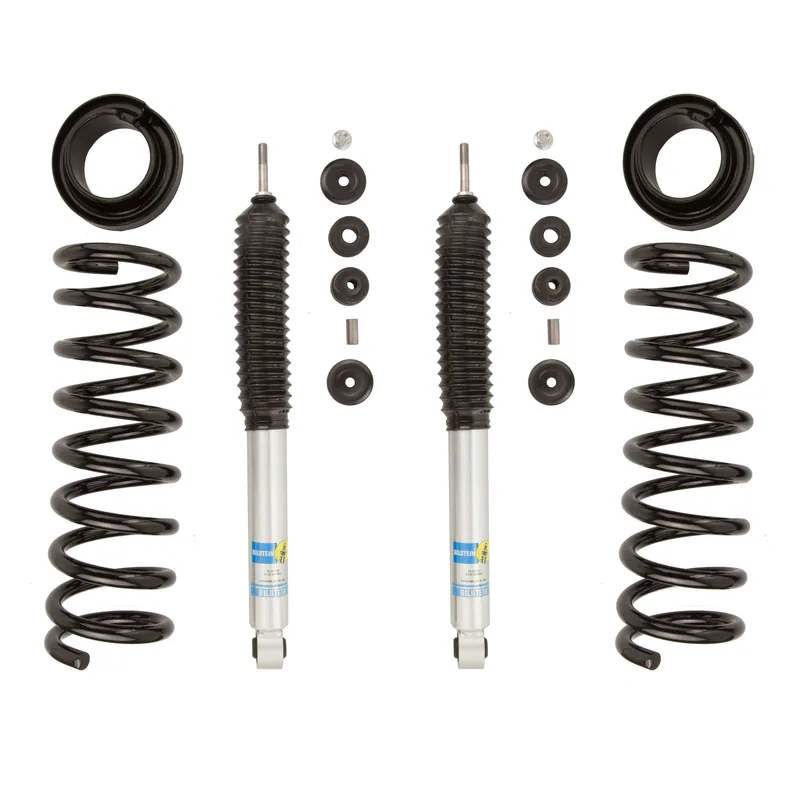

Bilstein 46-241634 B8 5112 Lift & Leveling Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.
Country of origin
United States
Box
Ships in Bilstein's own box (about 64 × 32 × 32 cm, 28.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

83 vehicles, newest years first

Ram 35002023–2026Big HornFront4WD · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002021–2026Laramie, Limited, Limited Longhorn, TradesmanFront4WD · Crew Cab Pickup · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002021–2026Laramie, Limited, Limited LonghornFront4WD · Mega Cab / Extended Crew Cab Pickup · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002021–2022Big Horn, Lone StarFront4WD · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002019–2020Big Horn, Laramie LonghornFront4WD · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002019–2020Laramie, Limited, Lone Star, TradesmanFront4WD · Crew Cab Pickup · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002019–2020Laramie, Limited, Lone StarFront4WD · Mega Cab / Extended Crew Cab Pickup · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002018Big Horn, Laramie Longhorn, LimitedFront4WD · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002013–2018Laramie, SLT, TradesmanFront4WD · Crew Cab Pickup · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002013–2018Laramie, SLTFront4WD · Mega Cab / Extended Crew Cab Pickup · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002017Big Horn, Laramie Longhorn, Limited, Lone StarFront4WD · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002016Big Horn, Laramie Longhorn, LimitedFront4WD · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002014–2015Big Horn, Laramie Limited, Laramie Longhorn, Lone StarFront4WD · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies
Ram 35002013Big Horn, Laramie Longhorn, Lone StarFront4WD · L6 6.7L
  • Provides 2" Front Lift
  • Adjustable track bar recommended
  • Check which applies

Specifications

As Bilstein publishes them.

Body Diameter (od)
2.0 in.
Piston Diameter
46mm
Shaft Diameter
14mm
Upper Mount Type
N/A
Body Design
Smooth Body (Non-Coilover)
Internal Design
Monotube
Finish
Dampers: Zinc Plated/Springs: Black
Reservoir
No
Adjustable Damping
Non-Adjustable
Boot Included
Black Bellows
Spring Seat Included
No
Front Main Spring Rate (lbs/in)
472

Installation & warranty

Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
