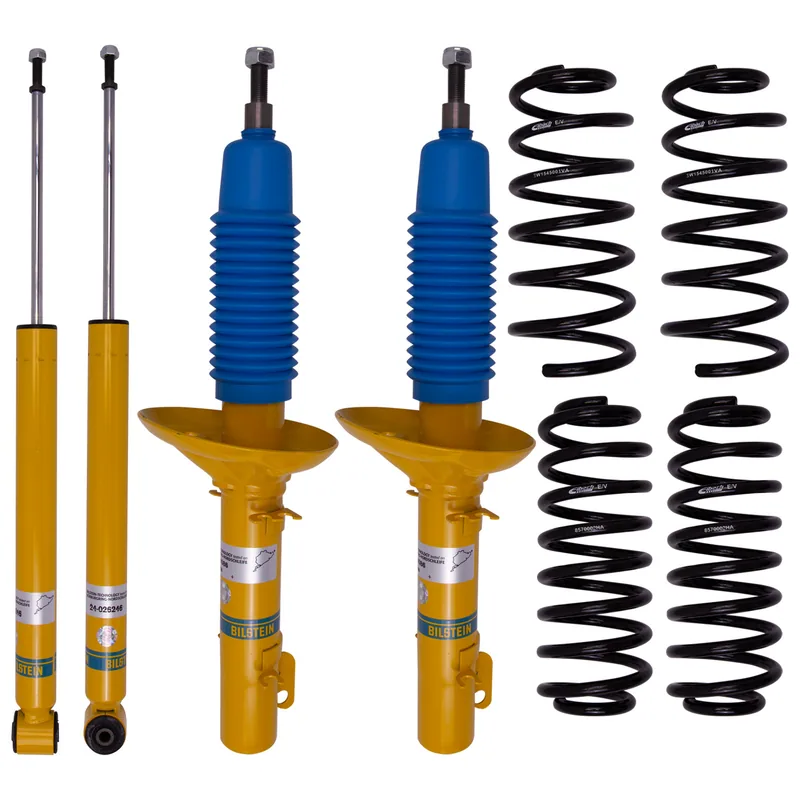

Bilstein 46-000378 B12 Pro-Kit Suspension Kit

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 58 × 29 × 29 cm, 23 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

27 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Volkswagen Beetle	Years	2006	Submodels	TDI	Position	Front and rear	Drive / body / engine	L4 1.9L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2005	Submodels	GLS TDI	Position	Front and rear	Drive / body / engine	L4 1.9L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2004–2005	Submodels	GLS	Position	Front and rear	Drive / body / engine	Hatchback · L4 1.8L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2003–2005	Submodels	GL, GLS	Position	Front and rear	Drive / body / engine	Hatchback · L4 2.0L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2003–2004	Submodels	Turbo S	Position	Front and rear	Drive / body / engine	L4 1.8L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2003–2004	Submodels	GL, GLS	Position	Front and rear	Drive / body / engine	Hatchback · L4 1.9L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2003	Submodels	GL, GLS, GLX	Position	Front and rear	Drive / body / engine	Hatchback · L4 1.8L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2002	Submodels	GL, GLS, GLX, Sport, Turbo S	Position	Front and rear	Drive / body / engine	L4 1.8L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2001–2002	Submodels	GL, GLS, Sport	Position	Front and rear	Drive / body / engine	L4 1.9L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2001–2002	Submodels	GL, GLS, Sport	Position	Front and rear	Drive / body / engine	L4 2.0L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2001	Submodels	GL, GLS, GLX, Sport	Position	Front and rear	Drive / body / engine	L4 1.8L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	2000	Submodels	GL, GLS, GLX	Position	Front and rear	Drive / body / engine	L4 1.8L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	1999–2000	Submodels	GL, GLS	Position	Front and rear	Drive / body / engine	L4 1.9L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	1999–2000	Submodels	GL, GLS	Position	Front and rear	Drive / body / engine	L4 2.0L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	1999	Submodels	GL, GLS	Position	Front and rear	Drive / body / engine	L4 1.8L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	1998	Submodels	TDI	Position	Front and rear	Drive / body / engine	L4 1.9L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies
Volkswagen Beetle	Years	1998	Submodels	Base	Position	Front and rear	Drive / body / engine	L4 2.0L	Notes	Front Lowered Height: 30mm, up to 1010kg Axle Load Rear Lowered Height: 30mm, up to 850kg Axle Load Check which applies

Specifications

As Bilstein publishes them.

Internal Design: Monotube
Finish: Dampers: Yellow/Springs: Dark Grey

Installation & warranty

Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
