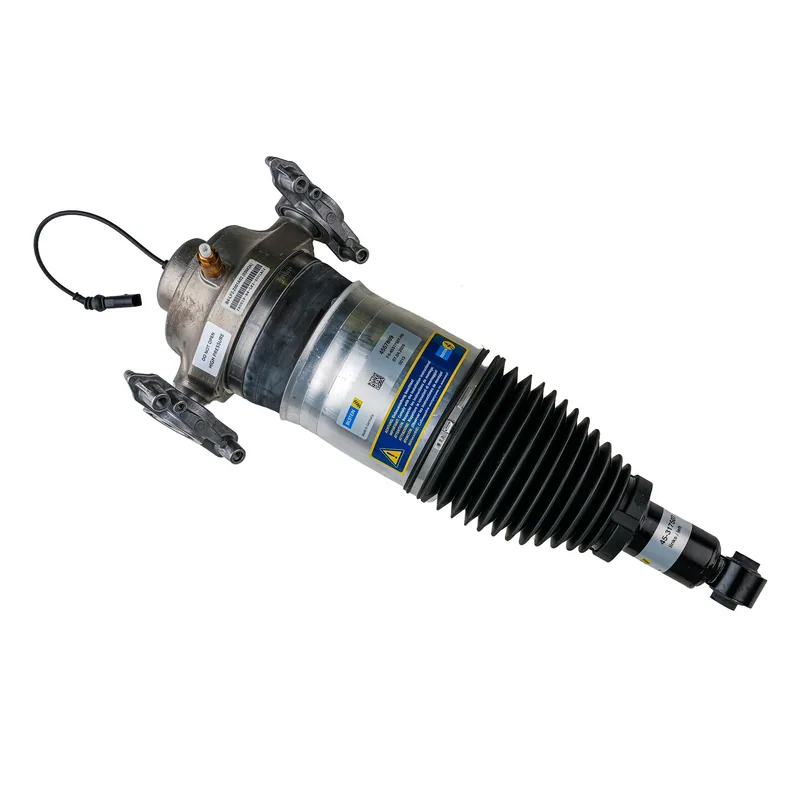

Bilstein 45-317507 B4 OE Replacement Air Air Suspension Strut

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

45-317514 B4 OE Replacement Air Air Suspension Strut (Rear right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces OE: Porsche 955 358 019 00, Porsche 955 358 019 10, Porsche 958 333 331 00, Porsche 958 358 019 00, Porsche 958 358 019 01, Porsche 958 358 019 05 and 15 more
Porsche 958 358 019 08, Porsche 958 358 019 10, Porsche 958 358 019 11, Porsche 958 358 019 17, Porsche 958 358 019 18, Porsche 958 358 019 20, Porsche 958 358 019 27, Porsche 958 358 019 30, Porsche 958 358 019 31, Porsche 958 358 019 32, Porsche 958 358 019 40, Porsche 958 358 019 42, Porsche 958 358 019 50, Volkswagen 7P6 616 019 J, Volkswagen 7P6 616 019 K
Replaces Bilstein: 45-240270
Country of origin: Germany
Box: Ships in Bilstein's own box (about 62 × 22 × 22 cm, 9.5 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

52 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Porsche Cayenne	Years	2018	Submodels	Base, GTS, S, S E-Hybrid, S E-Hybrid Platinum Edition, Turbo, Turbo S	Position	Rear left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air With Air Suspension Check which applies
Porsche Cayenne	Years	2018	Submodels	Platinum Edition	Position	Rear left	Drive / body / engine	All	Notes	With Air Suspension Check which applies
Porsche Cayenne	Years	2017	Submodels	Base, GTS, Platinum Edition, S, S E-Hybrid, S E-Hybrid Platinum Edition, Turbo, Turbo S	Position	Rear left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2016	Submodels	Base, Diesel, S, S E-Hybrid	Position	Rear left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2016	Submodels	GTS, Turbo, Turbo S	Position	Rear left	Drive / body / engine	All	Notes	—
Porsche Cayenne	Years	2015	Submodels	Diesel, S, S E-Hybrid	Position	Rear left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2015	Submodels	GTS, Turbo	Position	Rear left	Drive / body / engine	All	Notes	—
Porsche Cayenne	Years	2014	Submodels	Base, Diesel, Diesel Platinum Edition, Platinum Edition, S, S Hybrid	Position	Rear left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2013–2014	Submodels	GTS, Turbo, Turbo S	Position	Rear left	Drive / body / engine	All	Notes	—
Porsche Cayenne	Years	2013	Submodels	Base, Diesel, S, S Hybrid	Position	Rear left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2011–2012	Submodels	Base, S, S Hybrid	Position	Rear left	Drive / body / engine	All	Notes	Spring type: Front: Air , Rear: Air
Porsche Cayenne	Years	2011–2012	Submodels	Turbo	Position	Rear left	Drive / body / engine	All	Notes	—

Specifications

As Bilstein publishes them.

Extended Length (in): 20.46
Collapsed Length (in): 14.92
Extended Length (mm): 519.7
Collapsed Length (mm): 379.0
Upper Mount Type: Special
Lower Mount Type: Eye 12.2mm
Internal Design: Twintube
Finish: Black Paint
Boot Included: No
Spring Seat Included: No

Installation & warranty

Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
