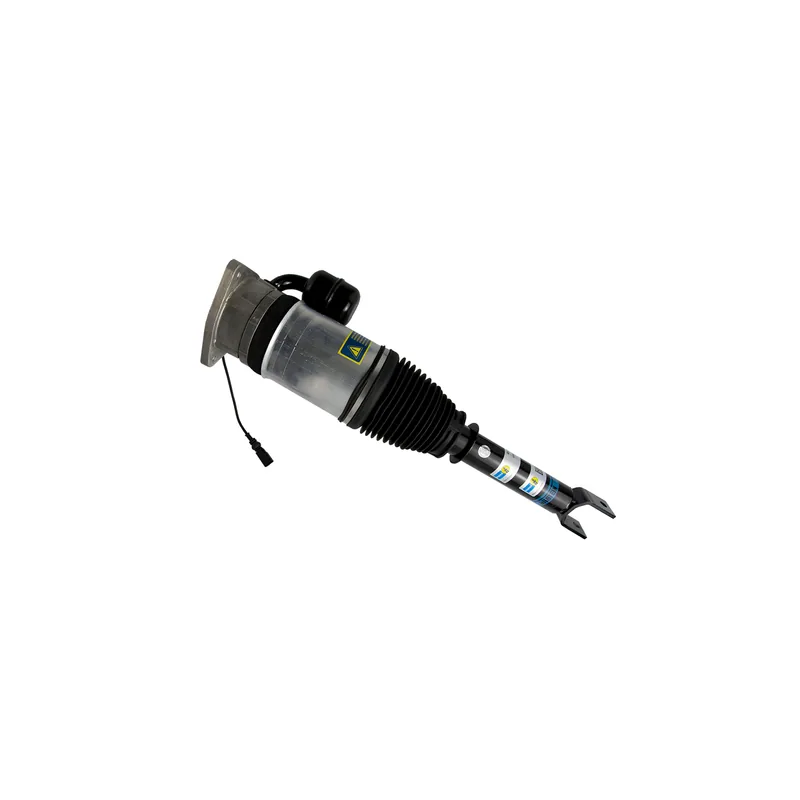

Bilstein 45-242007 B4 OE Replacement Air Air Suspension Strut
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 45-247193 B4 OE Replacement Air Air Suspension Strut (Rear right)
- Replaces OE
Audi 3D0 616 001 N, Audi 4E0 616 001 E, Audi 4E0 616 001 G, Audi 4E0 616 001 K, Audi 4E0 616 001 N, Audi 4E0 616 001 Q and 4 more
Audi 4E0 616 001 R, Audi 4E0 616 001 T, Volkswagen 3D0 616 001 H, Volkswagen 3D0 616 001 K
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 79 × 22 × 22 cm, 10 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
19 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Audi A8 Quattro (AWD) | 2010 | Base, L | Rear left | All |
|
| Audi A8 Quattro (AWD) | 2005–2009 | Base, L | Rear left | All |
|
| Audi A8 Quattro (AWD) | 2004 | L | Rear left | All |
|
| Volkswagen Phaeton | 2004–2006 | V8, W12 | Rear left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 26.80
- Collapsed Length (in)
- 21.17
- Extended Length (mm)
- 680.6
- Collapsed Length (mm)
- 537.7
- Upper Mount Type
- Special
- Lower Mount Type
- Fork
- Internal Design
- Twintube
- Finish
- Black Paint
- Boot Included
- No
- Spring Seat Included
- No
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
