BestB8 8112

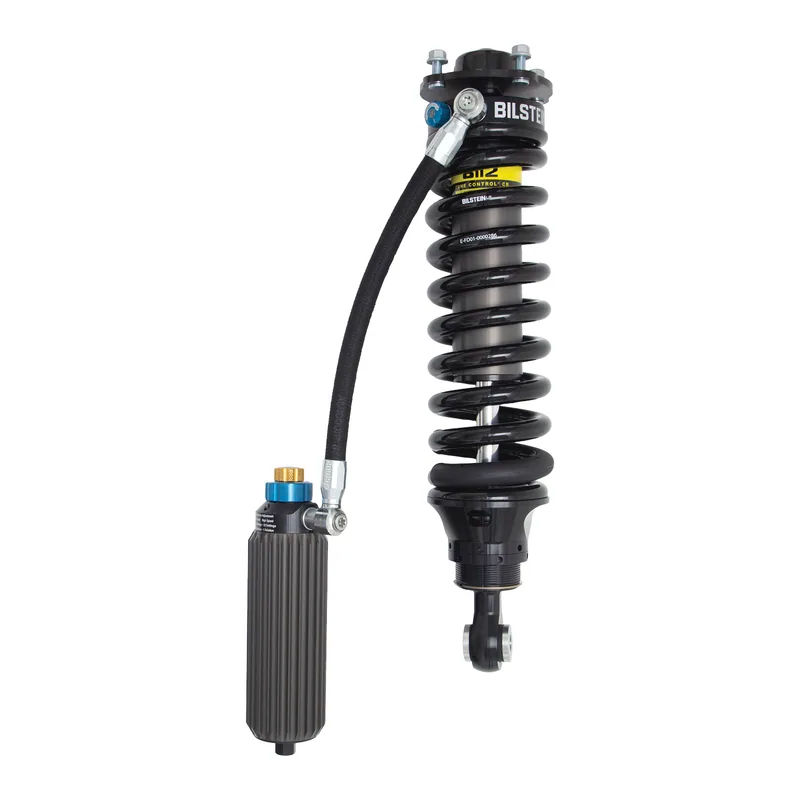

Bilstein 41-332238 B8 8112 Black Hawk Coilover Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

41-332245 B8 8112 Black Hawk Coilover Assembly (Front left)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 64 × 24 × 24 cm, 16.6 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

17 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Tundra	Years	2022–2026	Submodels	Limited, SR, SR5	Position	Front right	Drive / body / engine	4WD · Crew Cab Pickup · V6 3.4L i-Force	Notes	Provides 1-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-332334 recommended Provides 1-2.25" Front Lift without TRD Sport package 2-3" Front Lift with TRD Sport package Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-332334 recommended Provides 1-2.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-332334 recommended Check which applies
Toyota Tundra	Years	2022–2026	Submodels	Limited	Position	Front right	Drive / body / engine	4WD · Crew Cab Pickup · V6 3.4L i-Force Max	Notes	Provides 1-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-332334 recommended Provides 1-2.25" Front Lift without TRD Sport package 2-3" Front Lift with TRD Sport package Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-332334 recommended Provides 1-2.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-332334 recommended Check which applies
Toyota Tundra	Years	2022	Submodels	1794 Edition, Platinum	Position	Front right	Drive / body / engine	4WD · V6 3.4L i-Force	Notes	Provides 1-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-332334 recommended Provides 1-2.25" Front Lift without TRD Sport package 2-3" Front Lift with TRD Sport package Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-332334 recommended Provides 1-2.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-332334 recommended Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 21.83
Collapsed Length (in): 16.80
Extended Length (mm): 554.4
Collapsed Length (mm): 426.8
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Upper Mount Type: Special
Lower Mount Type: Eye 19.05mm
Body Design: Smooth Body (Coilover)
Internal Design: Monotube
Finish: Dampers: EVO Grey/Springs: Black
Reservoir: Yes - Finned Aluminum
Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Boot Included: No
Spring Seat Included: Yes
Body Material: Aluminum
Front Main Spring Rate (lbs/in): 600 lbs
Shaft Diameter (mm): 22.0

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
