BestB8 8112

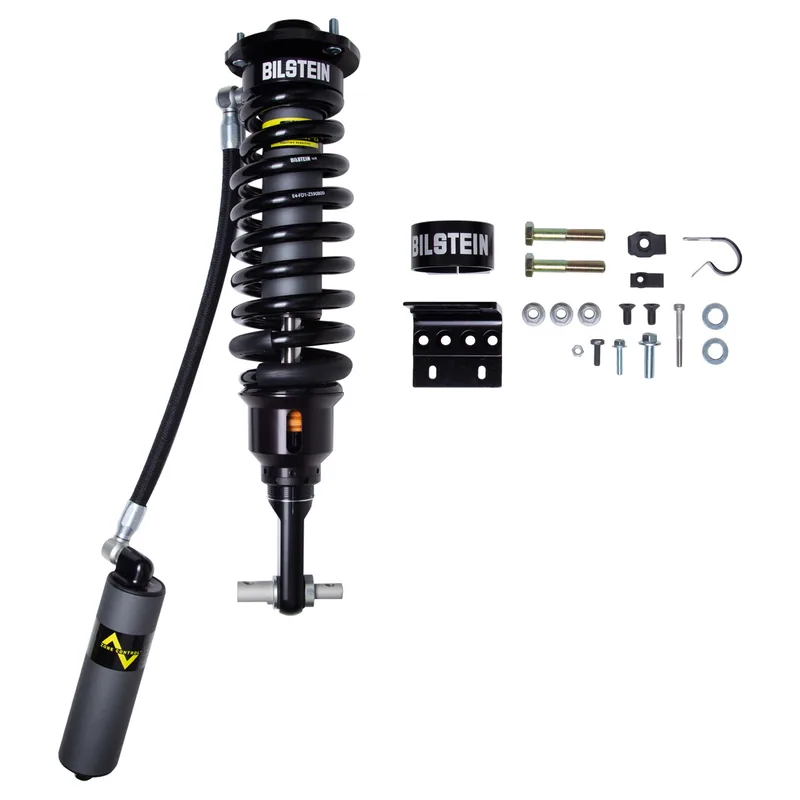

Bilstein 41-326701 B8 8112 ZoneControl CR Coilover Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

41-326725 B8 8112 ZoneControl CR Coilover Assembly (Front right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 67 × 24 × 24 cm, 20.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

56 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ford F-150	Years	2023	Submodels	Lariat	Position	Front left	Drive / body / engine	4WD · V6 2.7L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	King Ranch, Lariat, Limited, Platinum, Tremor	Position	Front left	Drive / body / engine	4WD · V6 3.5L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	King Ranch, Lariat, Limited, Platinum	Position	Front left	Drive / body / engine	4WD · V6 3.5L PowerBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	Tremor	Position	Front left	Drive / body / engine	4WD · V8 5.0L	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 2.7L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 3.5L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 3.5L PowerBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	King Ranch, Lariat, Platinum, XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.0L	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 2.7L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 3.5L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 3.5L PowerBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2023	Submodels	Lariat, XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.0L	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	Lariat	Position	Front left	Drive / body / engine	4WD · V6 2.7L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	King Ranch, Lariat, Limited, Platinum, Tremor	Position	Front left	Drive / body / engine	4WD · V6 3.5L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	King Ranch, Lariat, Limited, Platinum	Position	Front left	Drive / body / engine	4WD · V6 3.5L PowerBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 2.7L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 3.5L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 3.5L PowerBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	King Ranch, Lariat, Platinum, XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.0L	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 2.7L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 3.5L EcoBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 3.5L PowerBoost	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2021–2022	Submodels	Lariat, XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.0L	Notes	Provides 0-2.1" Front Lift Without Continuously Controlled Damping EcoBoost Engine Provides 1.6-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.6-2.7" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Provides 1.8-2.5" Front Lift Without Continuously Controlled Damping Aftermarket Upper Control Arms required Check which applies
Ford F-150	Years	2018–2020	Submodels	Limited	Position	Front left	Drive / body / engine	4WD	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	Lariat	Position	Front left	Drive / body / engine	4WD · V6 2.7L	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	King Ranch, Lariat, Platinum	Position	Front left	Drive / body / engine	4WD · V6 3.0L	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	King Ranch, Lariat, Platinum	Position	Front left	Drive / body / engine	4WD · V6 3.5L EcoBoost	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	King Ranch, Lariat, Platinum	Position	Front left	Drive / body / engine	4WD · V8 5.0L	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 2.7L	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 3.0L	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 3.5L EcoBoost	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.0L	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 2.7L	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 3.0L	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 3.5L EcoBoost	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2018–2020	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.0L	Notes	Provides 1.5-2.2" Front Lift Provides 1.5-2.3" Front Lift Check which applies
Ford F-150	Years	2016–2017	Submodels	King Ranch, Limited, Platinum	Position	Front left	Drive / body / engine	4WD	Notes	Provides 1.5-2.3" Front Lift
Ford F-150	Years	2015–2017	Submodels	Lariat	Position	Front left	Drive / body / engine	4WD · V6 2.7L	Notes	Provides 1.5-2.3" Front Lift
Ford F-150	Years	2015–2017	Submodels	Lariat	Position	Front left	Drive / body / engine	4WD · V6 3.5L EcoBoost	Notes	Provides 1.5-2.3" Front Lift
Ford F-150	Years	2015–2017	Submodels	Lariat	Position	Front left	Drive / body / engine	4WD · V8 5.0L	Notes	Provides 1.5-2.3" Front Lift
Ford F-150	Years	2015–2017	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 2.7L	Notes	Provides 1.5-2.3" Front Lift
Ford F-150	Years	2015–2017	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V6 3.5L EcoBoost	Notes	Provides 1.5-2.3" Front Lift
Ford F-150	Years	2015–2017	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Crew Cab Pickup · V8 5.0L	Notes	Provides 1.5-2.3" Front Lift
Ford F-150	Years	2015–2017	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 2.7L	Notes	Provides 1.5-2.3" Front Lift
Ford F-150	Years	2015–2017	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V6 3.5L EcoBoost	Notes	Provides 1.5-2.3" Front Lift
Ford F-150	Years	2015–2017	Submodels	XL, XLT	Position	Front left	Drive / body / engine	4WD · Extended Cab Pickup · V8 5.0L	Notes	Provides 1.5-2.3" Front Lift
Ford F-150	Years	2015	Submodels	King Ranch, Platinum	Position	Front left	Drive / body / engine	4WD	Notes	Provides 1.5-2.3" Front Lift

Specifications

As Bilstein publishes them.

Extended Length (in): 23.22
Collapsed Length (in): 18.45
Extended Length (mm): 589.8
Collapsed Length (mm): 468.7
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Upper Mount Type: Special
Lower Mount Type: Crossbar
Body Design: Smooth Body (Coilover)
Internal Design: Monotube
Finish: Dampers: EVO Grey/Springs: Black
Reservoir: Yes
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Body Material: Steel
Front Main Spring Rate (lbs/in): 500 lbs
Shaft Diameter (mm): 22.0
Aftermarket Upper Arms Required: Yes

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
