BestB8 8112

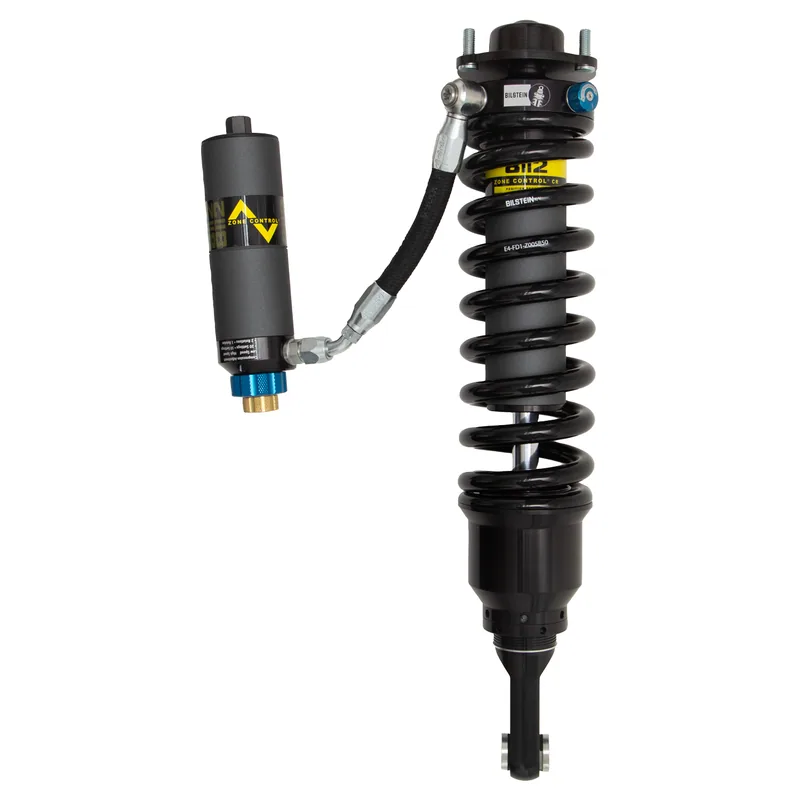

Bilstein 41-326343 B8 8112 ZoneControl CR DSA+ Coilover Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

41-326336 B8 8112 ZoneControl CR Coilover Assembly (Front right)
41-326350 B8 8112 ZoneControl CR DSA+ Coilover Assembly (Front right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 65 × 24 × 24 cm, 18.7 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

26 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Lexus GX470	Years	2003–2009	Submodels	Base	Position	Front left	Drive / body / engine	All	Notes	Provides 1.3-3" Front Lift Requires wheels with maximum 4.5" backspacing Check which applies
Toyota 4Runner	Years	2003–2009	Submodels	Limited, SR5	Position	Front left	Drive / body / engine	4WD · V6 4.0L	Notes	Provides 1.3-3.4" Front Lift Requires wheels with maximum 4.5" backspacing Provides 1.3-3.4" Front Lift Without X-REAS Suspension Requires wheels with maximum 4.5" backspacing Provides 2.2-3.3" Front Lift Requires wheels with maximum 4.5" backspacing Provides 2.2-3.3" Front Lift Without X-REAS Suspension Requires wheels with maximum 4.5" backspacing Provides 2.8-4" Front Lift Requires wheels with maximum 4.5" backspacing Provides 2.8-4" Front Lift Without X-REAS Suspension Requires wheels with maximum 4.5" backspacing Check which applies
Toyota 4Runner	Years	2003–2009	Submodels	Limited, SR5	Position	Front left	Drive / body / engine	4WD · V8 4.7L	Notes	Provides 1.3-3.4" Front Lift Requires wheels with maximum 4.5" backspacing Provides 1.3-3.4" Front Lift Without X-REAS Suspension Requires wheels with maximum 4.5" backspacing Provides 2.2-3.3" Front Lift Requires wheels with maximum 4.5" backspacing Provides 2.2-3.3" Front Lift Without X-REAS Suspension Requires wheels with maximum 4.5" backspacing Provides 2.8-4" Front Lift Requires wheels with maximum 4.5" backspacing Provides 2.8-4" Front Lift Without X-REAS Suspension Requires wheels with maximum 4.5" backspacing Check which applies
Toyota 4Runner	Years	2003–2009	Submodels	Limited, SR5	Position	Front left	Drive / body / engine	RWD · V6 4.0L	Notes	Provides 1.3-3.4" Front Lift Requires wheels with maximum 4.5" backspacing Provides 1.3-3.4" Front Lift Without X-REAS Suspension Requires wheels with maximum 4.5" backspacing Provides 2.2-3.3" Front Lift Requires wheels with maximum 4.5" backspacing Provides 2.2-3.3" Front Lift Without X-REAS Suspension Requires wheels with maximum 4.5" backspacing Provides 2.8-4" Front Lift Requires wheels with maximum 4.5" backspacing Provides 2.8-4" Front Lift Without X-REAS Suspension Requires wheels with maximum 4.5" backspacing Check which applies
Toyota FJ Cruiser	Years	2009	Submodels	Base	Position	Front left	Drive / body / engine	4WD	Notes	Provides 2.2-3.3" Front Lift Requires wheels with maximum 4.5" backspacing Check which applies
Toyota FJ Cruiser	Years	2008	Submodels	Base, Trail Teams Special Edition	Position	Front left	Drive / body / engine	4WD	Notes	Provides 2.2-3.3" Front Lift Requires wheels with maximum 4.5" backspacing Check which applies
Toyota FJ Cruiser	Years	2007	Submodels	Base, TRD Special Edition	Position	Front left	Drive / body / engine	4WD	Notes	Provides 2.2-3.3" Front Lift Requires wheels with maximum 4.5" backspacing Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 22.24
Collapsed Length (in): 17.43
Extended Length (mm): 564.8
Collapsed Length (mm): 442.6
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Upper Mount Type: Special
Lower Mount Type: Eye 14.1mm
Body Design: Smooth Body (Coilover)
Internal Design: Monotube
Finish: Dampers: EVO Grey/Springs: Black
Reservoir: Yes
Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Boot Included: No
Spring Seat Included: Yes
Body Material: Steel
Front Main Spring Rate (lbs/in): 600
Shaft Diameter (mm): 22.0

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
