BestB8 8112

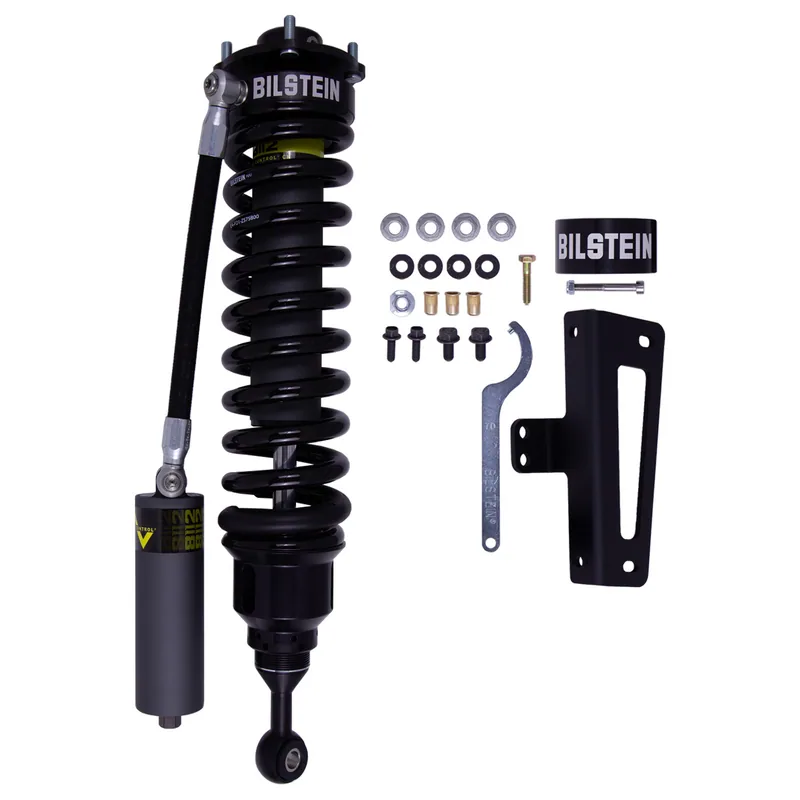

Bilstein 41-326022 B8 8112 ZoneControl CR Coilover Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

41-326039 B8 8112 ZoneControl CR Coilover Assembly (Front right)
41-326091 B8 8112 ZoneControl CR DSA+ Coilover Assembly (Front right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 41-284544
Country of origin: United States
Box: Ships in Bilstein's own box (about 74 × 24 × 24 cm, 20.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

71 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Tundra	Years	2021	Submodels	1794 Edition, Limited, Nightshade, Platinum, SR, SR5, Trail	Position	Front left	Drive / body / engine	4WD	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2021	Submodels	1794 Edition, Limited, Nightshade, Platinum, SR, SR5, Trail	Position	Front left	Drive / body / engine	RWD	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2019–2021	Submodels	TRD Pro	Position	Front left	Drive / body / engine	All	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2014–2020	Submodels	1794 Edition, Limited, Platinum, SR, SR5	Position	Front left	Drive / body / engine	4WD	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2014–2020	Submodels	1794 Edition, Limited, Platinum, SR, SR5	Position	Front left	Drive / body / engine	RWD	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2015–2017	Submodels	TRD Pro	Position	Front left	Drive / body / engine	All	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2012–2013	Submodels	Base, Limited, Platinum	Position	Front left	Drive / body / engine	4WD	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2012–2013	Submodels	Base, Limited, Platinum	Position	Front left	Drive / body / engine	RWD	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2010–2011	Submodels	Base, Limited, Platinum, SR5	Position	Front left	Drive / body / engine	4WD	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2010–2011	Submodels	Base, Limited, Platinum, SR5	Position	Front left	Drive / body / engine	RWD	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2007–2009	Submodels	Base, Limited, SR5	Position	Front left	Drive / body / engine	4WD	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies
Toyota Tundra	Years	2007–2009	Submodels	Base, Limited, SR5	Position	Front left	Drive / body / engine	RWD	Notes	Provides 2.25-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Provides 2.75-3.25" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353032 recommended Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 25.79
Collapsed Length (in): 19.43
Extended Length (mm): 655.1
Collapsed Length (mm): 493.6
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Upper Mount Type: Special
Lower Mount Type: Eye 16.1mm
Body Design: Smooth Body (Coilover)
Internal Design: Monotube
Finish: Dampers: EVO Grey/Springs: Black
Reservoir: Yes
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Body Material: Steel
Front Main Spring Rate (lbs/in): 650 lbs
Shaft Diameter (mm): 22.0
Aftermarket Upper Arms Required: Yes

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
