BestB8 8112

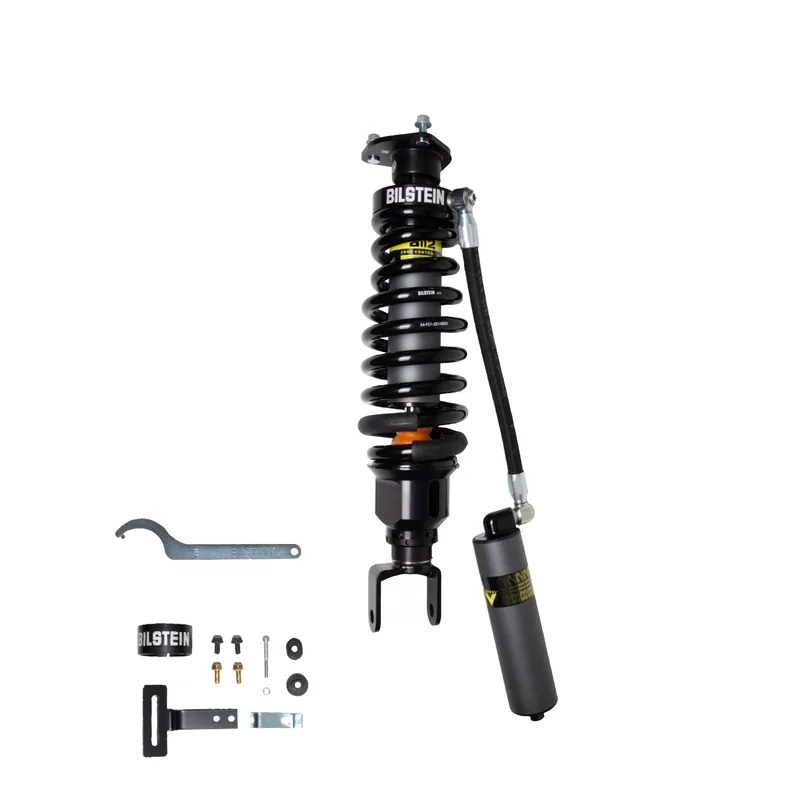

Bilstein 41-325230 B8 8112 ZoneControl CR Coilover Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

41-325247 B8 8112 ZoneControl CR Coilover Assembly (Front left)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 41-242391
Country of origin: United States
Box: Ships in Bilstein's own box (about 65 × 24 × 24 cm, 19 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

47 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ram 1500	Years	2026	Submodels	Big Horn, Express, Laramie, Lone Star, Rebel, Tradesman, Warlock	Position	Front right	Drive / body / engine	4WD · V8 5.7L	Notes	Provides 0.6-1.9" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2026	Submodels	Big Horn, Express, Laramie, Lone Star, Tradesman	Position	Front right	Drive / body / engine	RWD · V8 5.7L	Notes	Provides 0.6-1.9" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2024	Submodels	Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD · V8 5.7L	Notes	Provides 0.6-1.9" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2024	Submodels	Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	RWD · V8 5.7L	Notes	Provides 0.6-1.9" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2023	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD · V6 3.0L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2023	Submodels	Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD · V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2023	Submodels	Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	RWD · V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2022	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD · V6 3.0L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2022	Submodels	Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD · V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2022	Submodels	Big Horn, Laramie, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	RWD · V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star, Longhorn, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD · V6 3.0L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star, Longhorn, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD · V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited Longhorn, Lone Star, Longhorn, Rebel, Tradesman	Position	Front right	Drive / body / engine	RWD · V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD · V6 3.0L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD · V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	RWD · V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0-1.25" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2.25" Front Lift without Factory Off-Road Package 0-1.25" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2019	Submodels	Big Horn, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD · V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies
Ram 1500	Years	2019	Submodels	Big Horn, Laramie, Laramie Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	RWD · V8 5.7L	Notes	Spring type: Front: Coil , Rear: Coil Provides 0.6-1.9" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.1-2" Front Lift Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.25-2.5" Front Lift without factory Off-Road Package 0.6-1.9" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Provides 1.75-2.6" Front Lift without factory Off-Road Package 1.1-2" Front Lift with factory Off-Road Package Without Air Leveling Suspension Aftermarket Upper Control Arms required Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 22.16
Collapsed Length (in): 16.92
Extended Length (mm): 562.8
Collapsed Length (mm): 429.8
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Upper Mount Type: Special
Lower Mount Type: Eye 16.5mm
Body Design: Smooth Body (Coilover)
Internal Design: Monotube
Finish: Dampers: EVO Grey/Springs: Black
Reservoir: Yes
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: Yes
Body Material: Steel
Front Main Spring Rate (lbs/in): 550 lbs
Shaft Diameter (mm): 22.0

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
