BestB8 8112

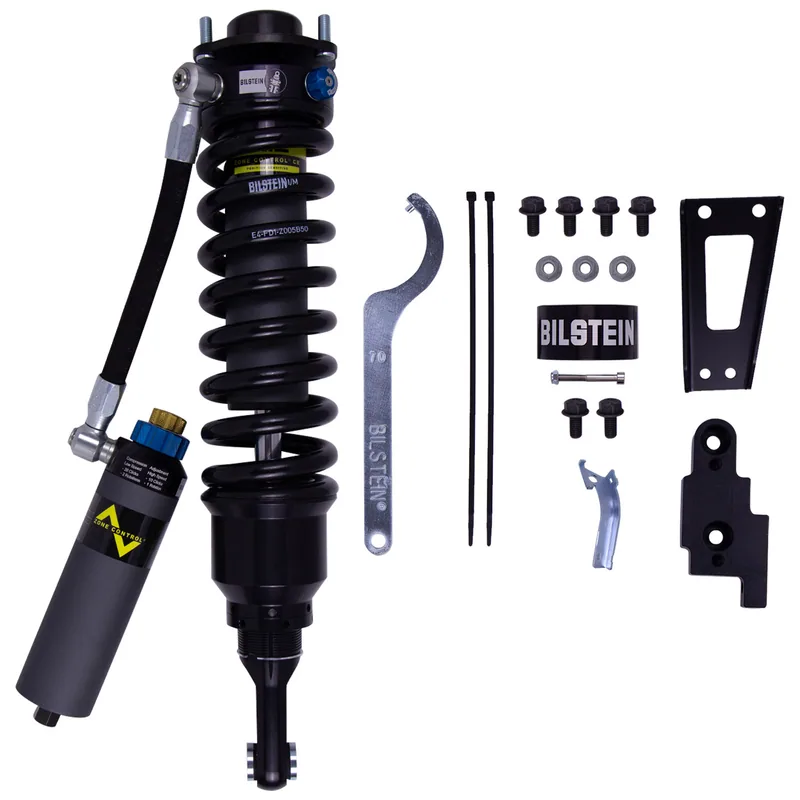

Bilstein 41-319574 B8 8112 ZoneControl CR DSA+ Coilover Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

41-319581 B8 8112 ZoneControl CR DSA+ Coilover Assembly (Front right)
41-322697 B8 8112 ZoneControl CR Coilover Assembly (Front right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 65 × 24 × 24 cm, 17.7 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

74 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Tacoma	Years	2023	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail Special Edition	Position	Front left	Drive / body / engine	4WD · V6 3.5L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2022–2023	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Sport	Position	Front left	Drive / body / engine	RWD · V6 3.5L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2016–2023	Submodels	SR, SR5	Position	Front left	Drive / body / engine	4WD · L4 2.7L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2016–2023	Submodels	SR, SR5	Position	Front left	Drive / body / engine	RWD · L4 2.7L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2022	Submodels	Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport	Position	Front left	Drive / body / engine	4WD · V6 3.5L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2021	Submodels	Limited, Nightshade, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail	Position	Front left	Drive / body / engine	4WD · V6 3.5L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2021	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Sport, Trail	Position	Front left	Drive / body / engine	RWD · V6 3.5L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2018–2020	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Sport	Position	Front left	Drive / body / engine	RWD · V6 3.5L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2017–2020	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport	Position	Front left	Drive / body / engine	4WD · V6 3.5L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2017	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport	Position	Front left	Drive / body / engine	RWD · V6 3.5L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2016	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Sport	Position	Front left	Drive / body / engine	4WD · V6 3.5L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2016	Submodels	Limited, SR, SR5, TRD Off-Road, TRD Sport	Position	Front left	Drive / body / engine	RWD · V6 3.5L	Notes	Provides 0.4-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.6-2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 0.8-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.7-2.2" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2015	Submodels	Base, TRD Pro	Position	Front left	Drive / body / engine	4WD · V6 4.0L	Notes	Provides 0.9-2.6" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.2-2.6" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2005–2015	Submodels	Pre Runner	Position	Front left	Drive / body / engine	V6 4.0L	Notes	Provides 0.9-2.6" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.2-2.6" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies
Toyota Tacoma	Years	2005–2014	Submodels	Base	Position	Front left	Drive / body / engine	4WD · V6 4.0L	Notes	Provides 0.9-2.6" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Provides 1.2-2.6" Front Lift Aftermarket Upper Control Arms required - Bilstein B8 Pro Control Arm Kit # 51-353070 recommended Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 22.39
Collapsed Length (in): 17.43
Extended Length (mm): 568.8
Collapsed Length (mm): 442.6
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Upper Mount Type: Special
Lower Mount Type: Eye 15.88mm
Body Design: Smooth Body (Coilover)
Internal Design: Monotube
Finish: Dampers: EVO Grey/Springs: Black
Reservoir: Yes
Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Boot Included: No
Spring Seat Included: Yes
Body Material: Steel
Front Main Spring Rate (lbs/in): 600 lbs
Shaft Diameter (mm): 22.0
Aftermarket Upper Arms Required: Yes
Optional Heavy Load Springs: 53-291387, 53-332837

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
