BestB8 8112

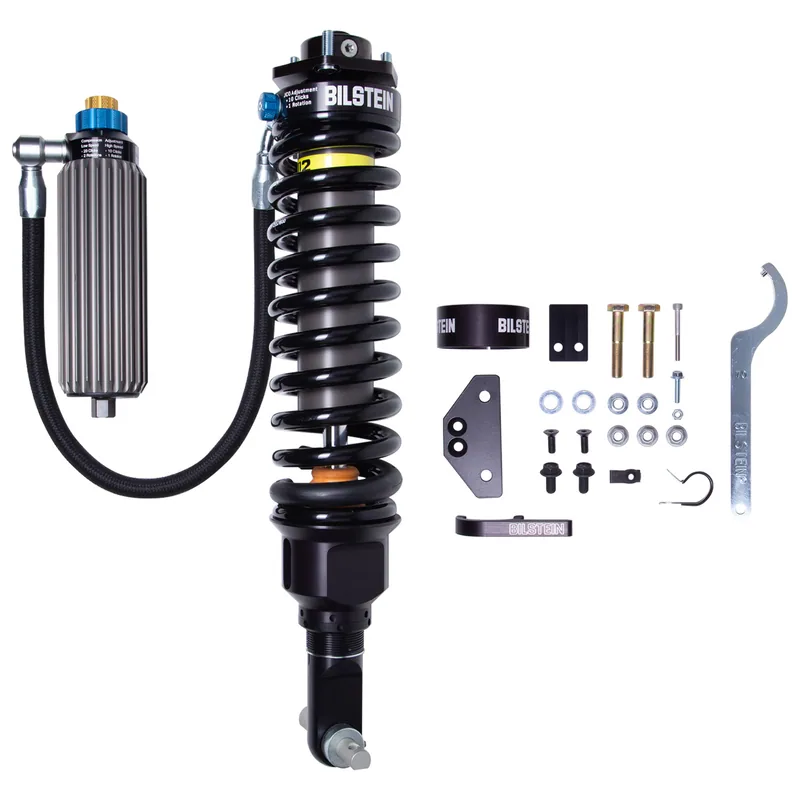

Bilstein 41-314319 B8 8112 Black Hawk Coilover Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

41-314227 B8 8112 Black Hawk Coilover Assembly (Front right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 68 × 24 × 24 cm, 18.7 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

43 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ford Bronco	Years	2026	Submodels	Badlands, Base	Position	Front left	Drive / body / engine	All	Notes	Doors: 2 Door Provides 0-1.4" Front Lift Provides 0.5-1.4" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2026	Submodels	Badlands, Base, Big Bend, Heritage Edition, Outer Banks	Position	Front left	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.4" Front Lift Provides 0.5-1.4" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2026	Submodels	Stroppe Edition	Position	Front left	Drive / body / engine	All	Notes	Provides 0-1.4" Front Lift Provides 0.5-1.4" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2025	Submodels	Badlands, Base, Big Bend, Heritage Edition, Outer Banks	Position	Front left	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.4" Front Lift Provides 0.6-1.7" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2025	Submodels	Badlands, Base, Stroppe Edition	Position	Front left	Drive / body / engine	All	Notes	Doors: 2 Door Provides 0-1.4" Front Lift Provides 0.6-1.7" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2024	Submodels	Badlands, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks, Wildtrak	Position	Front left	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.4" Front Lift Provides 0.6-1.7" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2024	Submodels	Badlands, Big Bend, Black Diamond, Heritage Edition, Heritage Limited Edition, Outer Banks, Wildtrak	Position	Front left	Drive / body / engine	All	Notes	Doors: 2 Door Provides 0-1.4" Front Lift Provides 0.6-1.7" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2023	Submodels	Badlands, Base, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks, Wildtrak	Position	Front left	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.4" Front Lift Provides 0.6-1.7" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2023	Submodels	Badlands, Base, Big Bend, Black Diamond, Heritage Edition, Heritage Limited Edition, Outer Banks, Wildtrak	Position	Front left	Drive / body / engine	All	Notes	Doors: 2 Door Provides 0-1.4" Front Lift Provides 0.6-1.7" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2022	Submodels	Badlands, Base, Big Bend, Black Diamond, Everglades, Outer Banks, Wildtrak	Position	Front left	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.4" Front Lift Provides 0.6-1.7" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2022	Submodels	Badlands, Base, Big Bend, Black Diamond, Outer Banks, Wildtrak	Position	Front left	Drive / body / engine	All	Notes	Doors: 2 Door Provides 0-1.4" Front Lift Provides 0.6-1.7" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2021	Submodels	Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak	Position	Front left	Drive / body / engine	All	Notes	Doors: 2 Door Provides 0-1.4" Front Lift Provides 0.6-1.7" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies
Ford Bronco	Years	2021	Submodels	Badlands, Base, Big Bend, Black Diamond, First Edition, Outer Banks, Wildtrak	Position	Front left	Drive / body / engine	All	Notes	Doors: 4 Door Provides 0-1.4" Front Lift Provides 0.6-1.7" Front Lift Provides 0.7-2.0" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Provides 1.2-2.1" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Provides 1.7-2.6" Front Lift Without Sasquatch Package 0-1.4" Front Lift With Sasquatch Package Aftermarket upper control arms recommended for lift heights greater than 2.5" Provides 2.4" Front Lift Without Sasquatch Package 0.6-1.7" Front Lift With Sasquatch Package Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 23.40
Collapsed Length (in): 17.59
Extended Length (mm): 594.7
Collapsed Length (mm): 446.2
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Upper Mount Type: Special
Lower Mount Type: Crossbar
Body Design: Smooth Body (Coilover)
Internal Design: Monotube
Finish: Dampers: EVO Grey/Springs: Black
Reservoir: Yes - Finned Aluminum
Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Boot Included: No
Spring Seat Included: Yes
Body Material: Aluminum
Front Main Spring Rate (lbs/in): 400
Shaft Diameter (mm): 22.0
Aftermarket Upper Arms Required: Yes

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
