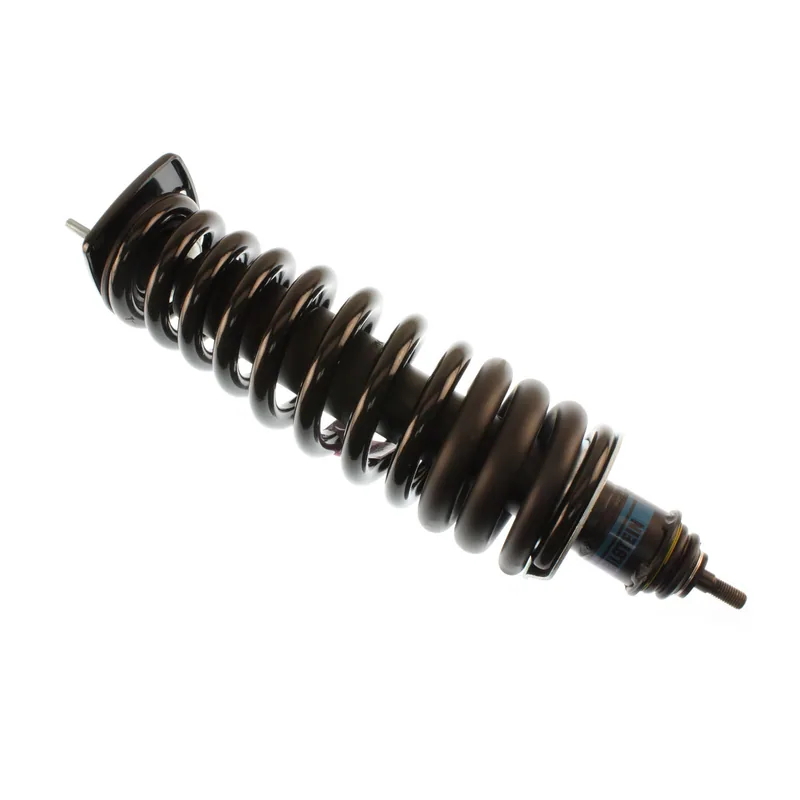

Bilstein 41-173435 B4 OE Replacement Strut Assembly
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces OE
Mercedes-Benz 163 320 00 13, Mercedes-Benz 163 320 04 13, Mercedes-Benz 163 320 09 13, Mercedes-Benz 163 320 10 13, Mercedes-Benz 163 320 11 13, Mercedes-Benz 163 320 13 13 and 9 more
Mercedes-Benz 163 320 15 13, Mercedes-Benz 163 320 18 13, Mercedes-Benz 163 320 21 13, Mercedes-Benz 163 320 21 13 80, Mercedes-Benz 163 320 23 13, Mercedes-Benz 163 320 23 13 28, Mercedes-Benz 163 320 24 13, Mercedes-Benz 163 320 24 13 28, Mercedes-Benz 163 320 25 13
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 45 × 20 × 16 cm, 9.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
20 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Mercedes-Benz ML320 | 1998–2003 | Base | Rear | All | — |
| Mercedes-Benz ML350 | 2003–2005 | Base | Rear | All | — |
| Mercedes-Benz ML430 | 1999–2001 | Base | Rear | All | — |
| Mercedes-Benz ML500 | 2002–2005 | Base | Rear | All | — |
| Mercedes-Benz ML55 AMG | 2000–2003 | Base | Rear | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 14.19
- Collapsed Length (in)
- 11.44
- Extended Length (mm)
- 360.5
- Collapsed Length (mm)
- 290.5
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Stem
- Internal Design
- Monotube
- Finish
- Black Paint
- Reservoir
- No
- Boot Included
- Black Straight
- Spring Seat Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
