ComponentMotorsport

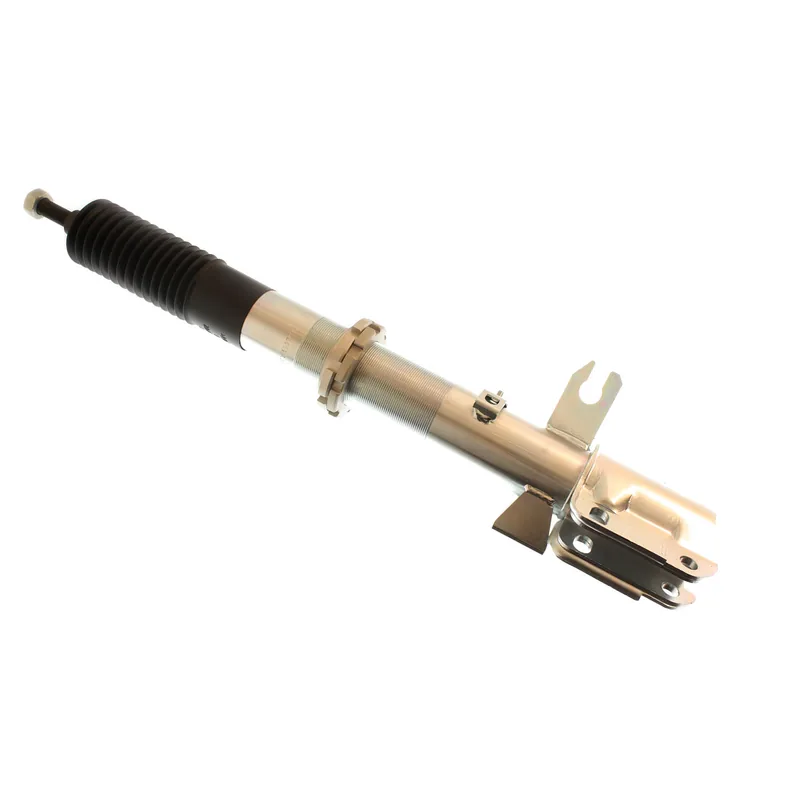

Bilstein 35-593744 Motorsports Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 61 × 20 × 16 cm, 4.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.53
- Collapsed Length (in)
- 16.61
- Extended Length (mm)
- 521.5
- Collapsed Length (mm)
- 422.0
- Piston Diameter
- 46mm
- Shaft Diameter
- 11mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Body Design
- Threaded Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- Yes
- Valve Code
- N/A
- Stroke/travel Length (in)
- 3.92
- Compression @0.26m/s
- 1440
- Rebound @0.26m/s
- 5370
- Body Material
- Steel
- Replacement Mounting Kit
- E4-FT4-Z007A02
- Spring Hardware
- N/A
- Piston Type
- Digressive
- Base Valve
- No
- Service Type
- Factory Rebuildable
- Position
- Front
- Racing Type
- Road Race
- Stroke/travel Length (in) Rounded
- 4
Installation & warranty
Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
