ComponentMotorsport

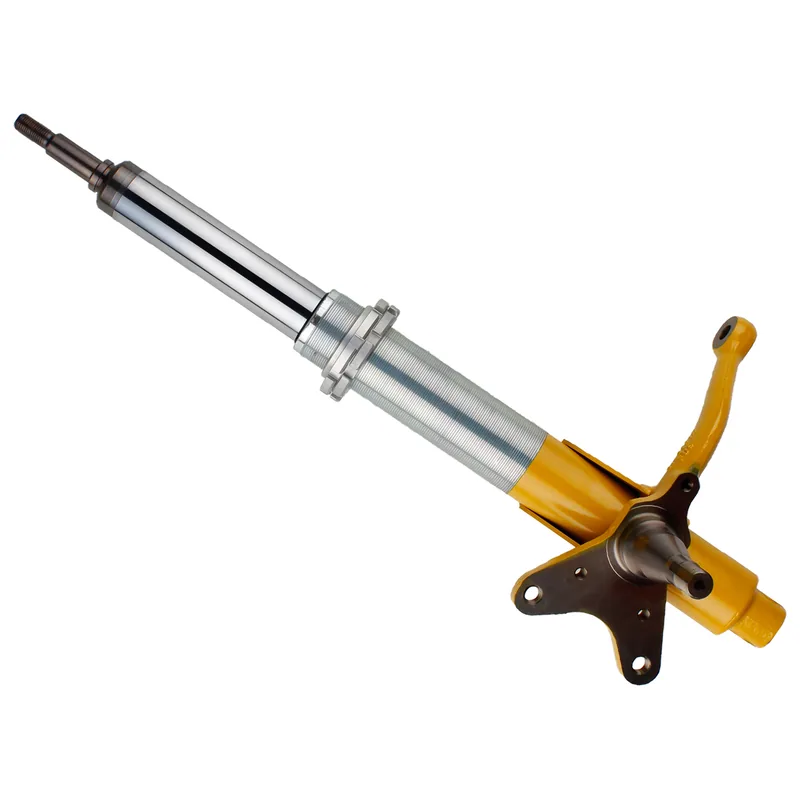

Bilstein 35-286691 Motorsports Strut Assembly

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

35-245834 Motorsports Strut Assembly (Front right)
35-286707 Motorsports Strut Assembly (Front right)
35-587736 Motorsports Strut Assembly (Front right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Germany
Box: Ships in Bilstein's own box (about 63 × 20 × 16 cm, 7.8 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

48 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Porsche 911	Years	1989	Submodels	Carrera, Speedster, Turbo Carrera	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Check which applies
Porsche 911	Years	1986–1988	Submodels	Carrera, Turbo Carrera	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Check which applies
Porsche 911	Years	1984–1985	Submodels	Carrera	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Check which applies
Porsche 911	Years	1978–1983	Submodels	SC	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Check which applies
Porsche 911	Years	1976–1977	Submodels	S, Turbo Carrera	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Check which applies
Porsche 911	Years	1975	Submodels	Carrera, S	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Check which applies
Porsche 911	Years	1974	Submodels	Base, Carrera, S	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Check which applies
Porsche 911	Years	1969–1973	Submodels	E, S, T	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Check which applies
Porsche 911	Years	1968	Submodels	Base, L, S	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Requires larger caliper with 3.5" mounting hole spacing found on 1969 and later models Check which applies
Porsche 911	Years	1967	Submodels	Base, S	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Requires larger caliper with 3.5" mounting hole spacing found on 1969 and later models Check which applies
Porsche 911	Years	1965–1966	Submodels	Base	Position	Front left	Drive / body / engine	All	Notes	RSR Version 3 Setting: 1665/1605 With Reinforced Spindle, -10mm ride height Requires additional components and racing springs Requires larger caliper with 3.5" mounting hole spacing found on 1969 and later models Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 21.65
Collapsed Length (in): 16.65
Extended Length (mm): 550.0
Collapsed Length (mm): 423.0
Upper Mount Type: Stem
Lower Mount Type: Special
Internal Design: Monotube
Finish: Yellow Paint
Boot Included: No
Spring Seat Included: Yes

Installation & warranty

Bilstein general installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
