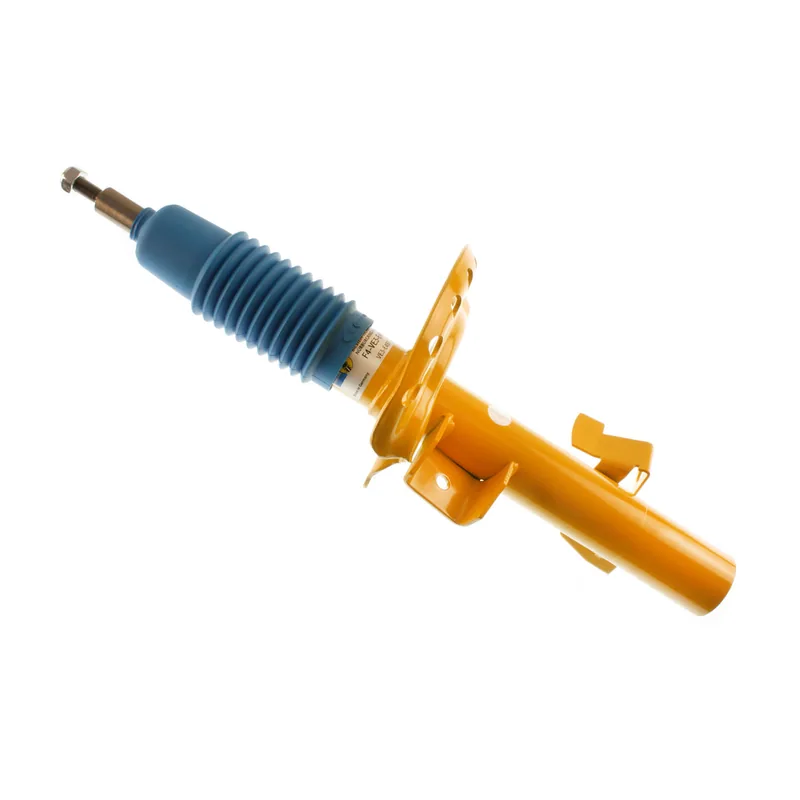

Bilstein 35-144977 B6 Performance Strut Assembly
Sold each
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 35-144960 B6 Performance Strut Assembly (Front left)
- Replaces OE
Volvo 31200245, Volvo 31200247, Volvo 31201056, Volvo 31201058, Volvo 31212217, Volvo 31212219 and 43 more
Volvo 31262171, Volvo 31262175, Volvo 31262419, Volvo 31262895, Volvo 31262896, Volvo 31262903, Volvo 31277200, Volvo 31277800, Volvo 31277900, Volvo 31277901, Volvo 31277904, Volvo 31277905, Volvo 31277908, Volvo 31277909, Volvo 31277912, Volvo 31277914, Volvo 31277917, Volvo 31290310, Volvo 31290312, Volvo 31290314, Volvo 31302504, Volvo 31302800, Volvo 31302916, Volvo 31304052, Volvo 31304095, Volvo 31304146, Volvo 31317794, Volvo 31317797, Volvo 31317798, Volvo 31317799, Volvo 31317800, Volvo 31317801, Volvo 31323217, Volvo 31323219, Volvo 31329099, Volvo 31340316, Volvo 31340319, Volvo 31340321, Volvo 31340346, Volvo 31340350, Volvo 31406002, Volvo 31408626, Volvo 31429127
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 58 × 20 × 16 cm, 5.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
16 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Volvo S80 | 2016 | T5, T5 Platinum | Front right | All |
|
| Volvo S80 | 2015 | T5 | Front right | All |
|
| Volvo S80 | 2010–2014 | 3.2 | Front right | All |
|
| Volvo S80 | 2008–2009 | 3.2, T6, V8 | Front right | All | — |
| Volvo S80 | 2007 | 3.2, V8 | Front right | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.63
- Collapsed Length (in)
- 16.65
- Extended Length (mm)
- 498.5
- Collapsed Length (mm)
- 423.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Monotube
- Finish
- Yellow Paint
- Boot Included
- Blue Bellows
- Spring Seat Included
- Yes - Fixed
Installation & warranty
100% genuine Bilstein, from authorized North American distribution.
