BetterB6 Performance

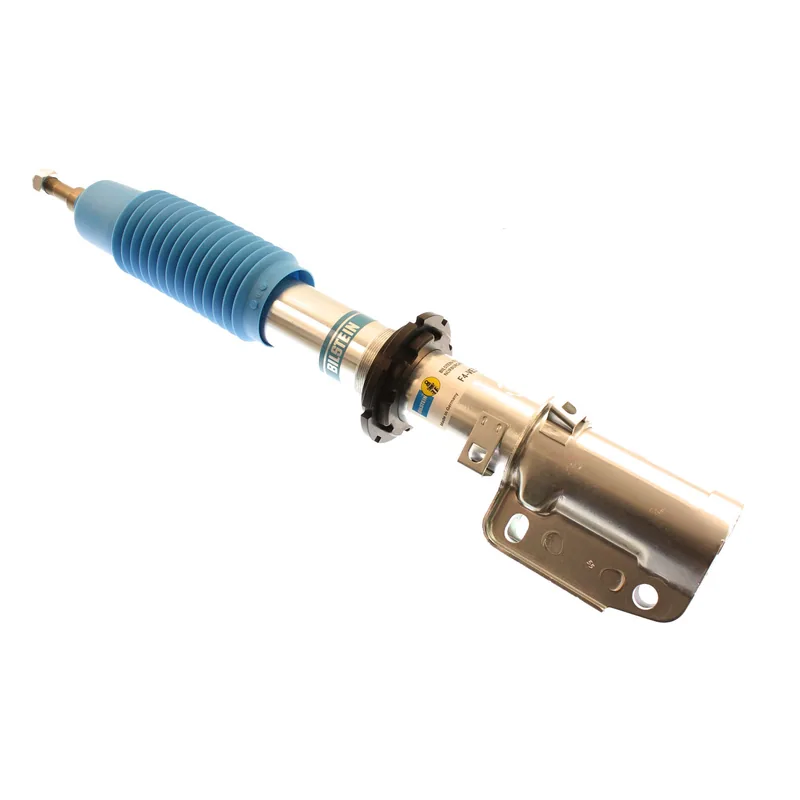

Bilstein 35-052777 B6 Performance Strut Assembly
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
Matching part for the other side
- 35-052784 B6 Performance Strut Assembly (Front right)
- Replaces OE
- Porsche 964 343 041 02, Porsche 964 343 041 03, Porsche 964 343 041 04, Porsche 965 343 041 00, Porsche 965 343 041 02
- Country of origin
- Germany
- Box
- Ships in Bilstein's own box (about 60 × 20 × 16 cm, 4.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
18 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Porsche 911 | 1994 | Carrera 2, Carrera 4, RS America, Speedster, Turbo 3.6 | Front left | All | — |
| Porsche 911 | 1993 | Carrera 2, Carrera 4, RS America, Turbo 3.6 | Front left | All | — |
| Porsche 911 | 1991–1992 | Carrera 2, Carrera 4, Turbo | Front left | All | — |
| Porsche 911 | 1990 | Carrera 2, Carrera 4 | Front left | All | — |
| Porsche 911 | 1989 | Carrera 4 | Front left | All | — |
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.37
- Collapsed Length (in)
- 15.63
- Extended Length (mm)
- 517.5
- Collapsed Length (mm)
- 397.0
- Upper Mount Type
- Stem
- Lower Mount Type
- Bracket
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Boot Included
- Blue Bellows
- Spring Seat Included
- Yes - Fixed
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
