ComponentMotorsport

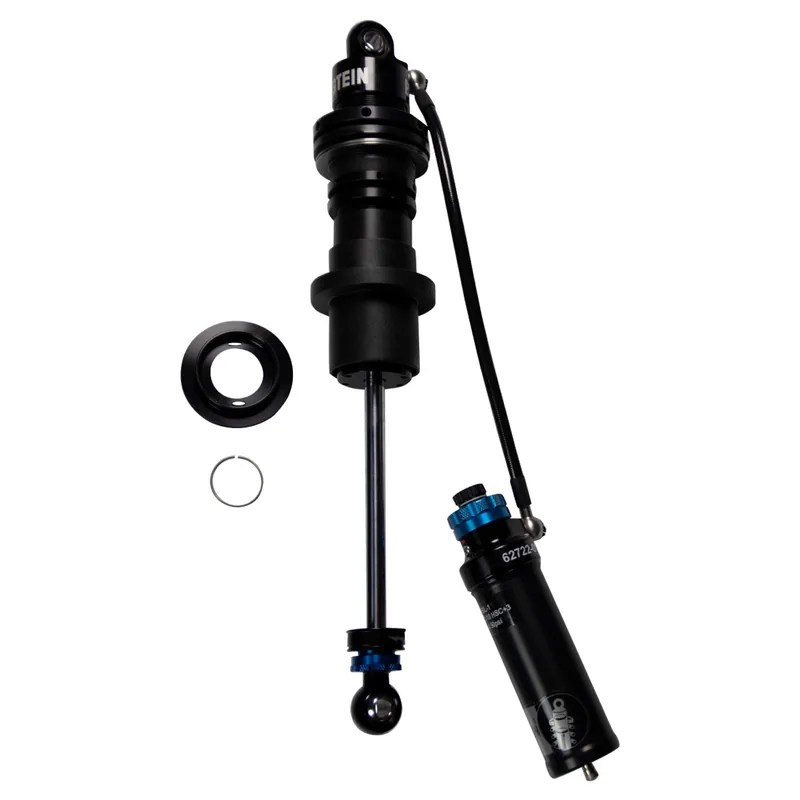

Bilstein 33-327730 AS2-R Series Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 55 × 11 × 11 cm, 2.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.29
- Collapsed Length (in)
- 12.71
- Extended Length (mm)
- 490.0
- Collapsed Length (mm)
- 322.9
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- 1/2in Heim
- Lower Mount Type
- 1/2in Heim
- Body Design
- Threaded Body Screw Top (Coilover)
- Internal Design
- Monotube
- Finish
- Clear Anodized
- Adjustable Damping
- Triple Adjustable - Rebound and High and Low Speed Compression
- Boot Included
- No
- Spring Seat Included
- Yes
- Valve Code
- RF PORT ROYAL
- Stroke/travel Length (in)
- 6.57
- Body Material
- Aluminum
- Spring Hardware
- B4-MKT-0008A00
- Spring Hardware 2
- B4-MKT-0004A00
- Spring Hardware 3
- B4-FT4-Z060A00
- Spring Hardware 4
- E4-MSG-0096A00
- Spring Hardware 5
- E4-MSG-0072A00
- Piston Type
- Digressive/High Flow Linear
- Base Valve
- Yes
- Service Type
- Racer Rebuildable
- Racing Type
- Circle Track
- Racing Class
- CT-Dirt Late Model
- Stroke/travel Length (in) Rounded
- 7
Installation & warranty
Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
