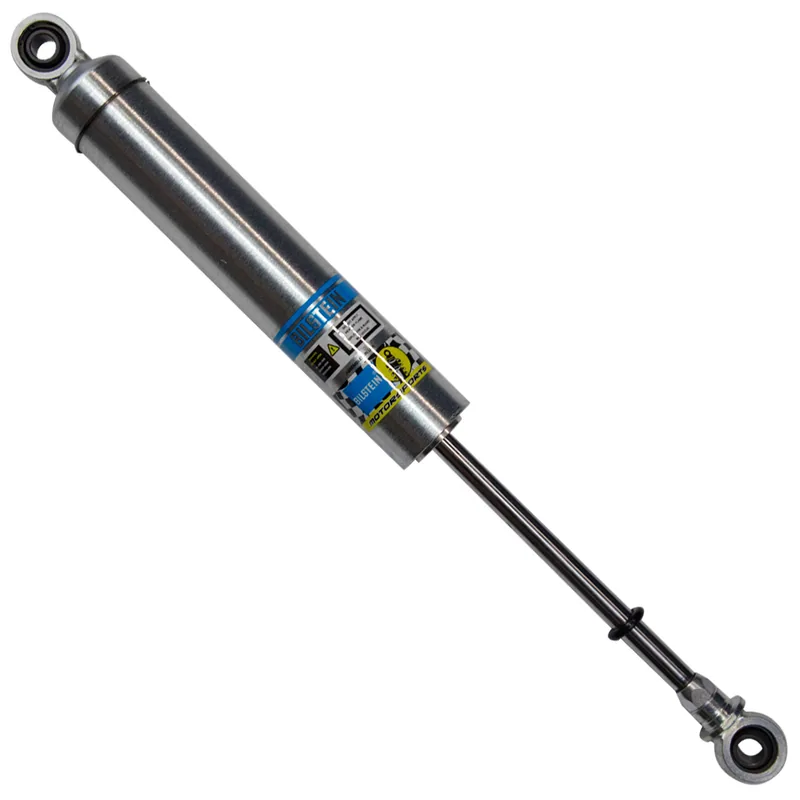

Bilstein 33-321639 SL Series Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 57 × 11 × 11 cm, 2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 20.08
- Collapsed Length (in)
- 13.15
- Extended Length (mm)
- 510.0
- Collapsed Length (mm)
- 334.0
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- 1/2in Heim
- Lower Mount Type
- 1/2in Heim
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Adjustable Damping
- Non-Adjustable
- Boot Included
- No
- Spring Seat Included
- No
- Valve Code
- C3-R5
- Stroke/travel Length (in)
- 6.93
- Body Material
- Steel
- Piston Type
- Linear
- Base Valve
- No
- Service Type
- Factory Rebuildable
- Racing Type
- Circle Track
- Racing Class
- CT-Stock Car
- Stroke/travel Length (in) Rounded
- 7
Installation & warranty
Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
