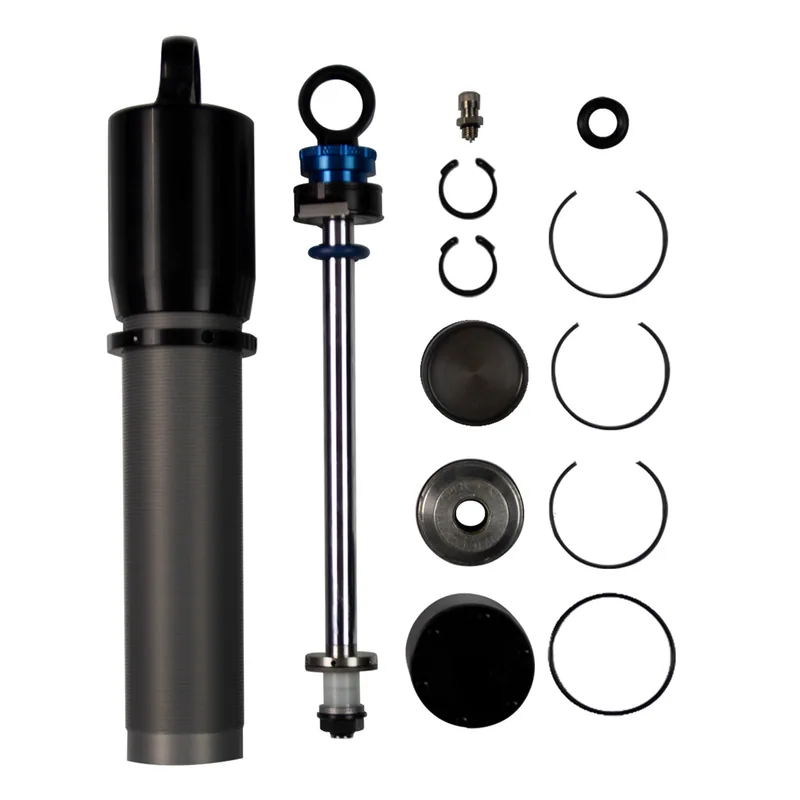

Bilstein 33-314686 XVA Series Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 48 × 11 × 11 cm, 1.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 16.50
- Collapsed Length (in)
- 12.09
- Extended Length (mm)
- 419.0
- Collapsed Length (mm)
- 307.0
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- 1/2in Heim
- Lower Mount Type
- 1/2in Heim
- Body Design
- Threaded Body Large Bulb Screw Top (Coilover)
- Internal Design
- Monotube
- Finish
- Clear Anodized
- Adjustable Damping
- Single Adjustable - Rebound
- Boot Included
- No
- Spring Seat Included
- No
- Valve Code
- Dry Kit (no valving)
- Stroke/travel Length (in)
- 4.41
- Body Material
- Aluminum
- Piston Type
- Sold Separately
- Base Valve
- Sold Separately
- Service Type
- Racer Rebuildable
- Racing Type
- Circle Track
- Racing Class
- CT-Sprint Car
- Stroke/travel Length (in) Rounded
- 5
Installation & warranty
Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
