BetterB8 5100

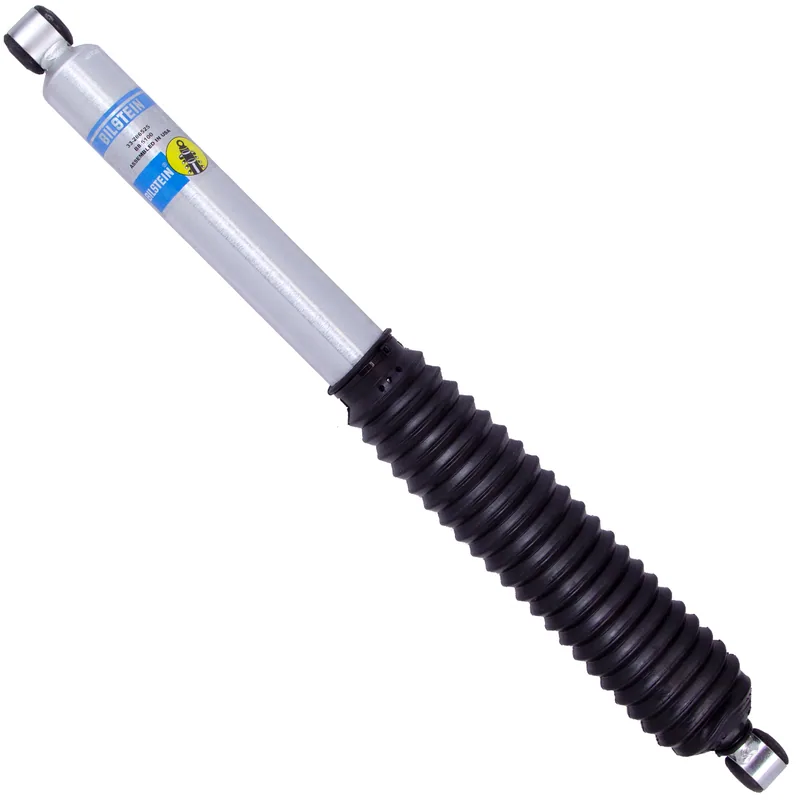

Bilstein 33-286525 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 76 × 11 × 11 cm, 2.8 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
8 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford F-150 | 2014 | FX2 | Rear | All |
|
| Ford F-150 | 2014 | King Ranch, Lariat, Limited, Platinum, STX, XL, XLT | Rear | RWD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 27.37
- Collapsed Length (in)
- 16.97
- Extended Length (mm)
- 695.2
- Collapsed Length (mm)
- 431.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 12mm
- Lower Mount Type
- Eye 12mm
- Body Design
- Smooth Body (Non-coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 10.40
Installation & warranty
Bilstein installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
