BetterB8 5100

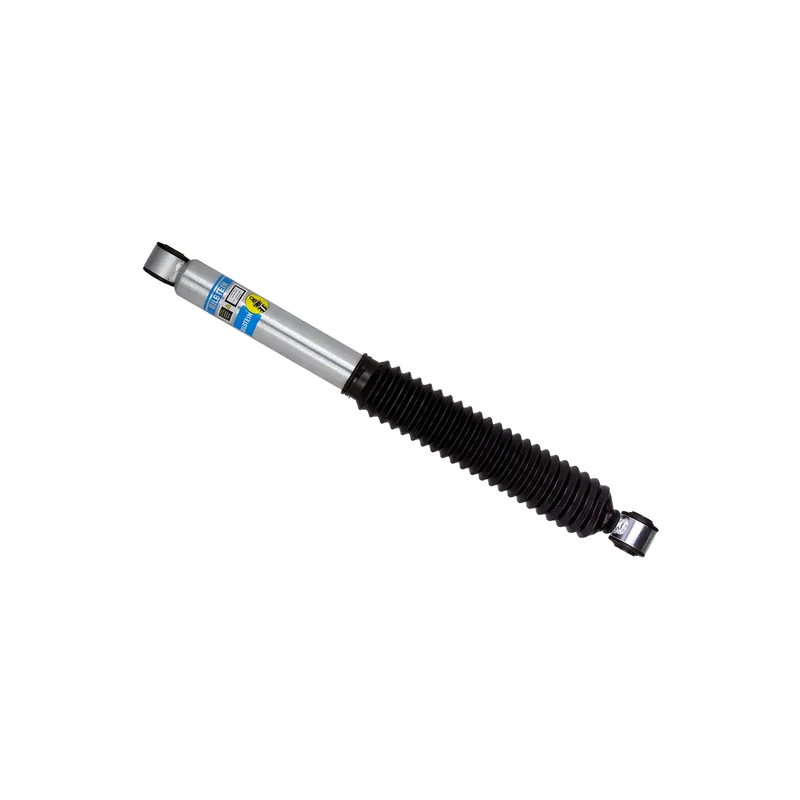

Bilstein 33-268996 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 72 × 11 × 11 cm, 2.6 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
41 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Nissan TITAN XD | 2024 | PRO-4X, Platinum Reserve, SV | Rear | All |
|
| Nissan TITAN XD | 2022–2023 | PRO-4X, Platinum Reserve, S, SV | Rear | All |
|
| Nissan TITAN XD | 2020–2021 | PRO-4X, Platinum Reserve, S, SL, SV | Rear | All |
|
| Nissan TITAN XD | 2016–2019 | PRO-4X | Rear | All |
|
| Nissan TITAN XD | 2016–2019 | Platinum Reserve, S, SL, SV | Rear | 4WD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 25.81
- Collapsed Length (in)
- 16.20
- Extended Length (mm)
- 655.7
- Collapsed Length (mm)
- 411.5
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 14mm
- Lower Mount Type
- Eye 14mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 9.59
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
