BetterB8 5100

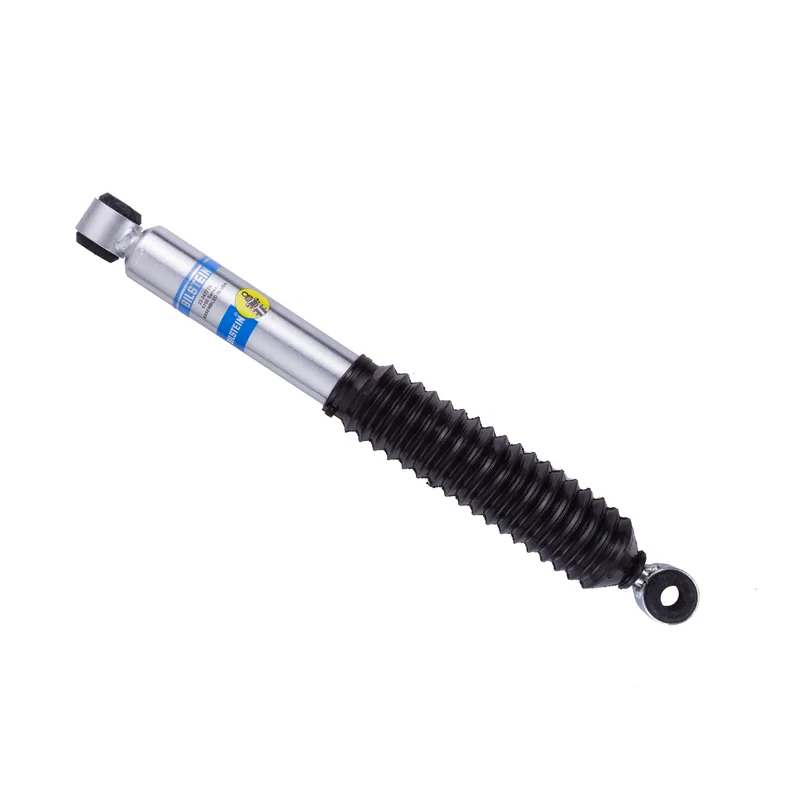

Bilstein 33-247724 B8 5100 Shock Absorber

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

33-247717 B8 5100 Shock Absorber (Rear right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Mexico
Box: Ships in Bilstein's own box (about 60 × 11 × 11 cm, 2.4 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

24 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Tacoma	Years	2001–2004	Submodels	Pre Runner	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 1-1.5" Rear Lift A minimum 1" lift block is required for this application Check which applies
Toyota Tacoma	Years	2001–2004	Submodels	Base	Position	Rear left	Drive / body / engine	4WD · L4 2.7L	Notes	Fits Vehicles With 1-1.5" Rear Lift A minimum 1" lift block is required for this application Check which applies
Toyota Tacoma	Years	2001–2004	Submodels	Base	Position	Rear left	Drive / body / engine	4WD · V6 3.4L	Notes	Fits Vehicles With 1-1.5" Rear Lift A minimum 1" lift block is required for this application Check which applies
Toyota Tacoma	Years	1998–2000	Submodels	Limited, Pre Runner	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 1-1.5" Rear Lift A minimum 1" lift block is required for this application Check which applies
Toyota Tacoma	Years	1998–2000	Submodels	Base, SR5	Position	Rear left	Drive / body / engine	4WD · L4 2.7L	Notes	Fits Vehicles With 1-1.5" Rear Lift A minimum 1" lift block is required for this application Check which applies
Toyota Tacoma	Years	1998–2000	Submodels	Base, SR5	Position	Rear left	Drive / body / engine	4WD · V6 3.4L	Notes	Fits Vehicles With 1-1.5" Rear Lift A minimum 1" lift block is required for this application Check which applies
Toyota Tacoma	Years	1996–1997	Submodels	SR5	Position	Rear left	Drive / body / engine	All	Notes	Fits Vehicles With 1-1.5" Rear Lift A minimum 1" lift block is required for this application Check which applies
Toyota Tacoma	Years	1996–1997	Submodels	Base	Position	Rear left	Drive / body / engine	4WD · L4 2.7L	Notes	Fits Vehicles With 1-1.5" Rear Lift A minimum 1" lift block is required for this application Check which applies
Toyota Tacoma	Years	1996–1997	Submodels	Base	Position	Rear left	Drive / body / engine	4WD · V6 3.4L	Notes	Fits Vehicles With 1-1.5" Rear Lift A minimum 1" lift block is required for this application Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 21.14
Collapsed Length (in): 13.62
Extended Length (mm): 537.0
Collapsed Length (mm): 346.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Eye 19mm
Lower Mount Type: Eye 19mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Stroke/travel Length (in): 7.64
Replacement Mounting Kit: B4-KT1-Z234A00

Installation & warranty

Bilstein installation instructions (PDF)

Limited Lifetime Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
