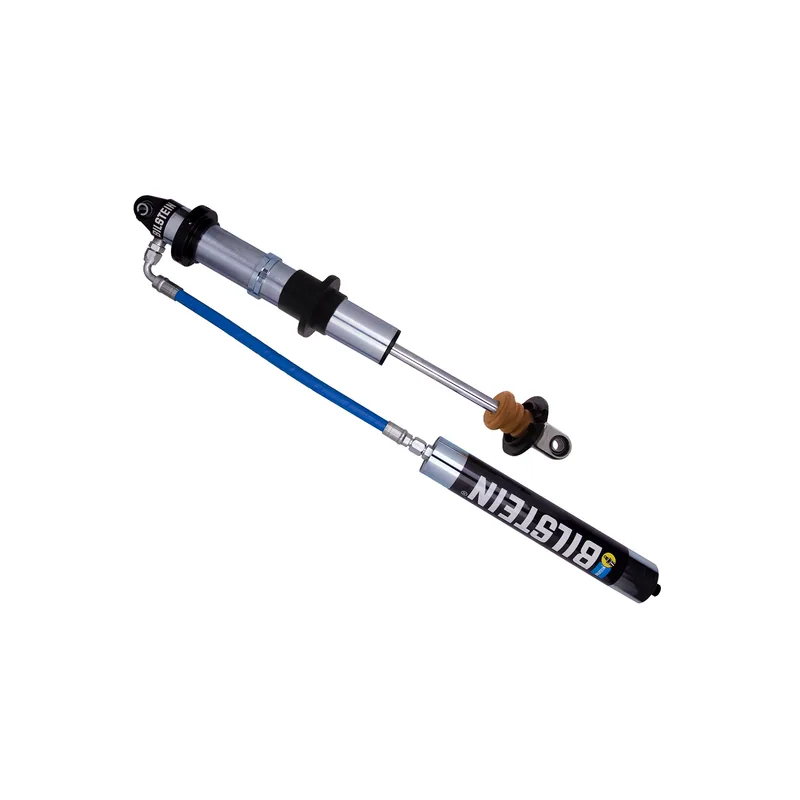

Bilstein 33-244471 M 9200 Coilover Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 81 × 20 × 14 cm, 11.4 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 29.50
- Collapsed Length (in)
- 19.50
- Extended Length (mm)
- 749.3
- Collapsed Length (mm)
- 495.3
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Upper Mount Type
- Eye .5x1.5in
- Lower Mount Type
- Eye .5x1.5in
- Body Design
- Threaded Body (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- Yes
- Boot Included
- N/A
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 10.00
- Compression @0.52m/s
- 1000
- Rebound @0.52m/s
- 2550
- Mount Type
- Eye-to-Eye
- Optional Reservoir Clamp
- N/A
- Shaft Diameter (mm)
- 22.0
- Valving Type
- Medium
- Racing Type
- Off-Road
- Stroke/travel Length (in) Rounded
- 10
- Collapsed Length (in) Incremental
- 20-20.99
- Extended Length (in) Incremental
- 29-29.99
Installation & warranty
Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
