BetterB8 5100

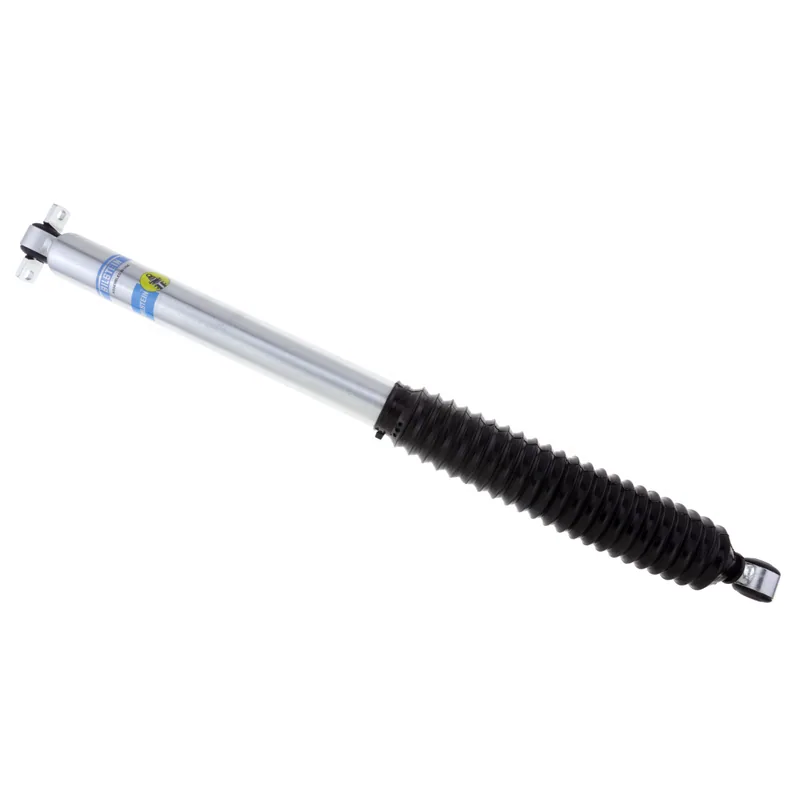

Bilstein 33-236964 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Replaces Bilstein
- 33-151656
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 88 × 13 × 13 cm, 3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
16 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Ford Excursion | 2005 | Eddie Bauer, Limited, XLT | Rear | 4WD |
|
| Ford Excursion | 2004 | Eddie Bauer, Limited, XLS, XLT | Rear | 4WD |
|
| Ford Excursion | 2003 | Eddie Bauer, Limited, XLT | Rear | 4WD |
|
| Ford Excursion | 2000–2002 | Limited, XLT | Rear | 4WD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 32.01
- Collapsed Length (in)
- 20.28
- Extended Length (mm)
- 813.0
- Collapsed Length (mm)
- 515.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Bar Pin
- Lower Mount Type
- Eye 12mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 11.73
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
