BetterB8 5100

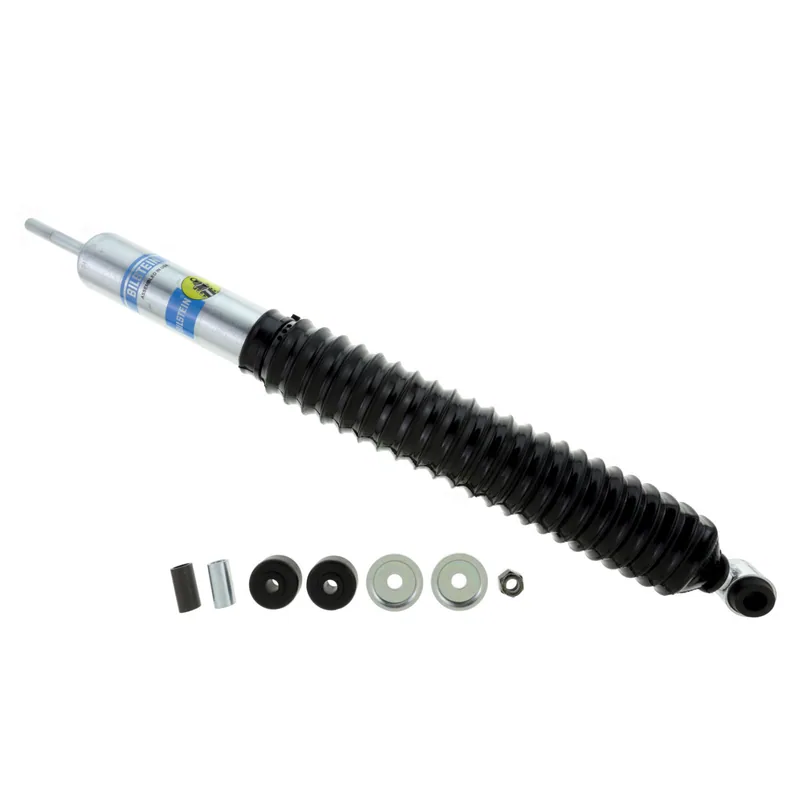

Bilstein 33-230450 B8 5125 Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Check fitment with us before ordering
Bilstein doesn't list the vehicles this part fits. Tell us your vehicle and we'll check that this part fits before you order.
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 65 × 11 × 11 cm, 2.3 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
Check fitment with us before ordering. Bilstein doesn't list the vehicles this part fits, so it isn't in our vehicle search. Tell us your vehicle and we'll check that this part fits before you order.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 22.91
- Collapsed Length (in)
- 14.32
- Extended Length (mm)
- 581.9
- Collapsed Length (mm)
- 363.7
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Stem
- Lower Mount Type
- Eye 5/8in
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 8.59
- Compression @0.52m/s
- 755
- Rebound @0.52m/s
- 3775
- Mount Type
- Stem-to-Eye
- Replacement Mounting Kit
- B4-KT1-Z103A02
- Valving Type
- Firm
- Stroke/travel Length (in) Rounded
- 9
- Collapsed Length (in) Incremental
- 14-14.99
- Extended Length (in) Incremental
- 22-22.99
Installation & warranty
Bilstein installation instructions 1 (PDF) Bilstein installation instructions 2 (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
