BetterB8 5100

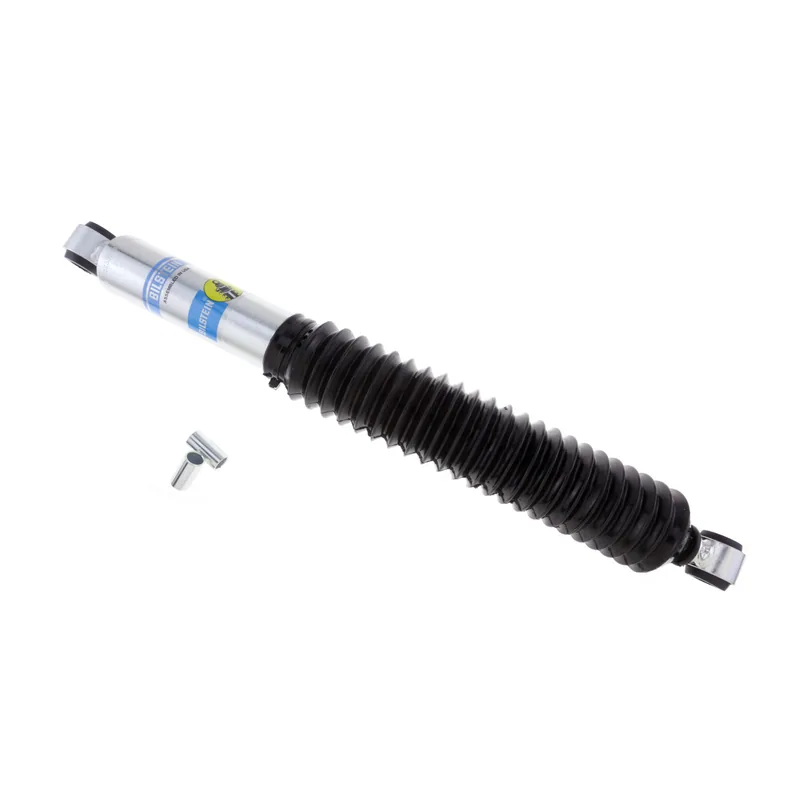

Bilstein 33-230313 B8 5125 Shock Absorber

Sold each · 2 per axle

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: Mexico
Box: Ships in Bilstein's own box (about 62 × 11 × 11 cm, 2.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

60 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Jeep CJ5	Years	1982–1983	Submodels	Base, Laredo, Limited, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ5	Years	1981	Submodels	Base, Laredo, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ5	Years	1980	Submodels	Base, Golden Eagle, Laredo, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ5	Years	1977–1979	Submodels	Base, Golden Eagle, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ5	Years	1976	Submodels	Base, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ7	Years	1985–1986	Submodels	Base, Laredo, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ7	Years	1984	Submodels	Base, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ7	Years	1982–1983	Submodels	Base, Laredo, Limited, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ7	Years	1981	Submodels	Base, Laredo, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ7	Years	1980	Submodels	Base, Golden Hawk, Laredo, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ7	Years	1977–1979	Submodels	Base, Golden Eagle, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift
Jeep CJ7	Years	1976	Submodels	Base, Renegade	Position	Rear	Drive / body / engine	All	Notes	Fits Vehicles With 2-2.5" Rear Lift

Specifications

As Bilstein publishes them.

Extended Length (in): 21.70
Collapsed Length (in): 13.66
Extended Length (mm): 551.2
Collapsed Length (mm): 347.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Eye 5/8in
Lower Mount Type: Eye 5/8in
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Adjustable Damping: Non-Adjustable
Boot Included: Black Bellows
Spring Seat Included: No
Stroke/travel Length (in): 8.04
Compression @0.52m/s: 595
Rebound @0.52m/s: 1810
Mount Type: Eye-to-Eye
Replacement Mounting Kit: B4-KT1-Z236A00
Valving Type: Soft
Stroke/travel Length (in) Rounded: 8
Collapsed Length (in) Incremental: 13-13.99
Extended Length (in) Incremental: 21-21.99

Installation & warranty

Bilstein installation instructions (PDF)

Limited 90-Day Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
