BestB8 8100

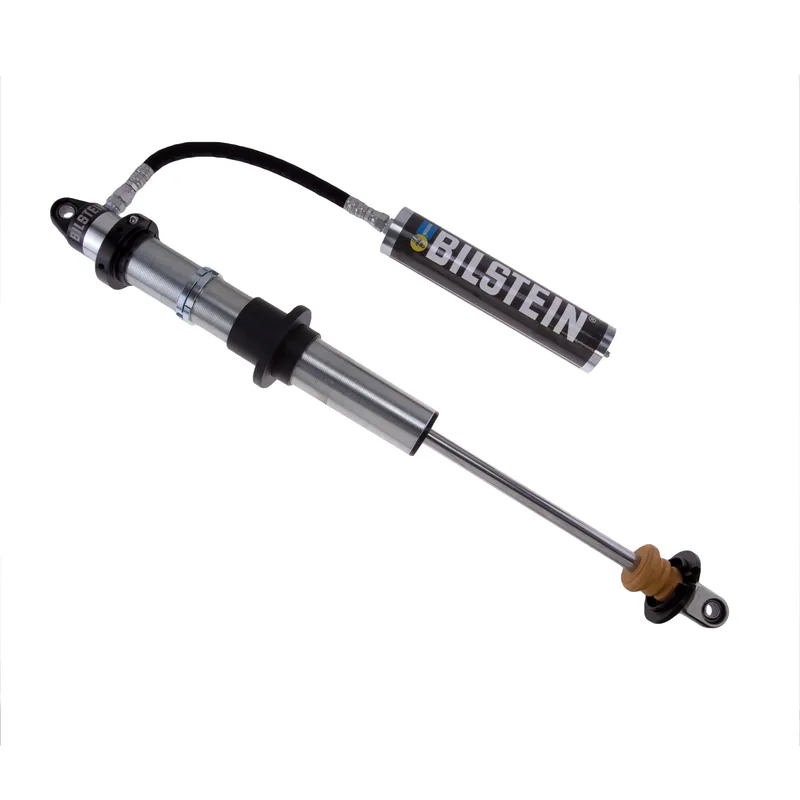

Bilstein 33-225555 B8 8125 Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Check fitment with us before ordering
Bilstein doesn't list the vehicles this part fits. Tell us your vehicle and we'll check that this part fits before you order.
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 100 × 20 × 14 cm, 10.2 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
Check fitment with us before ordering. Bilstein doesn't list the vehicles this part fits, so it isn't in our vehicle search. Tell us your vehicle and we'll check that this part fits before you order.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 37.00
- Collapsed Length (in)
- 23.00
- Extended Length (mm)
- 939.8
- Collapsed Length (mm)
- 584.2
- Body Diameter (od)
- 2.65 in.
- Piston Diameter
- 60mm
- Upper Mount Type
- Eye .5x1.5in
- Lower Mount Type
- Eye .5x1.5in
- Body Design
- Threaded Body Screw Top (Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- Yes
- Spring Seat Included
- Yes
- Stroke/travel Length (in)
- 14.00
- Compression @0.52m/s
- 1100
- Rebound @0.52m/s
- 3700
- Mount Type
- Eye-to-Eye
- Optional Reservoir Clamp
- B4-KT1-Z292A00
- Shaft Diameter (mm)
- 22.0
- Valving Type
- Firm
- Racing Type
- Off-Road
- Stroke/travel Length (in) Rounded
- 14
- Collapsed Length (in) Incremental
- 23-23.99
- Extended Length (in) Incremental
- 37-37.99
Installation & warranty
Bilstein installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
