BetterB8 5100

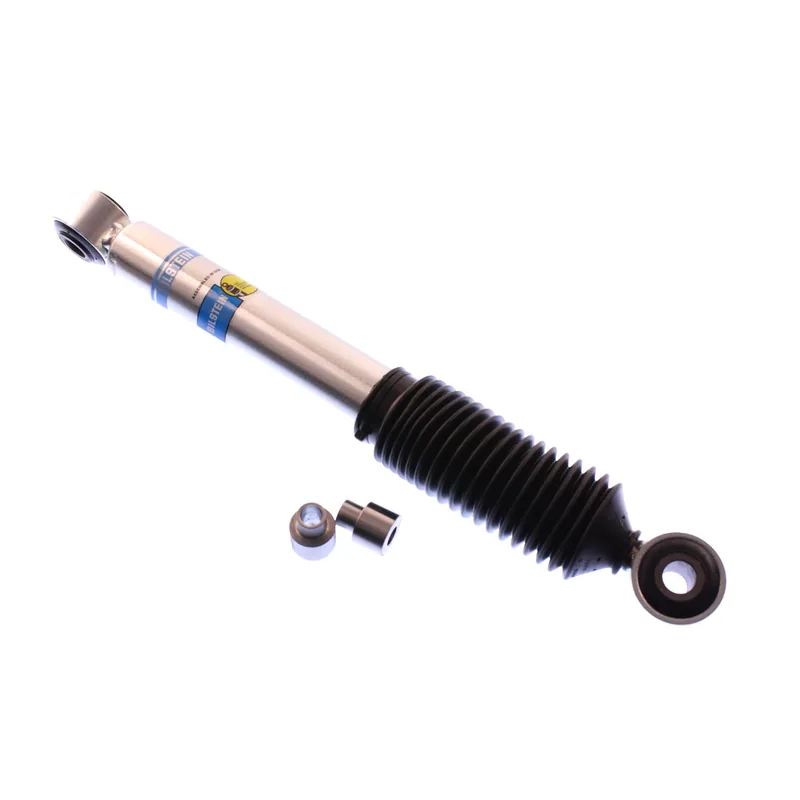

Bilstein 33-187280 B8 5100 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 55 × 11 × 11 cm, 2.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
37 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Sequoia | 2021–2022 | Limited, Nightshade, SR5, TRD Sport | Rear | All |
|
| Toyota Sequoia | 2020 | Limited, SR5, TRD Sport | Rear | All |
|
| Toyota Sequoia | 2018–2019 | Limited, SR5, TRD Sport | Rear | All |
|
| Toyota Sequoia | 2008–2017 | Limited, SR5 | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 19.29
- Collapsed Length (in)
- 13.71
- Extended Length (mm)
- 490.0
- Collapsed Length (mm)
- 348.3
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 19.1mm
- Lower Mount Type
- Eye 19.1mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 5.58
- Replacement Mounting Kit
- B4-KT1-Z261A01
Installation & warranty
Bilstein general installation instructions (PDF)
Limited Lifetime Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
