BetterB8 5100

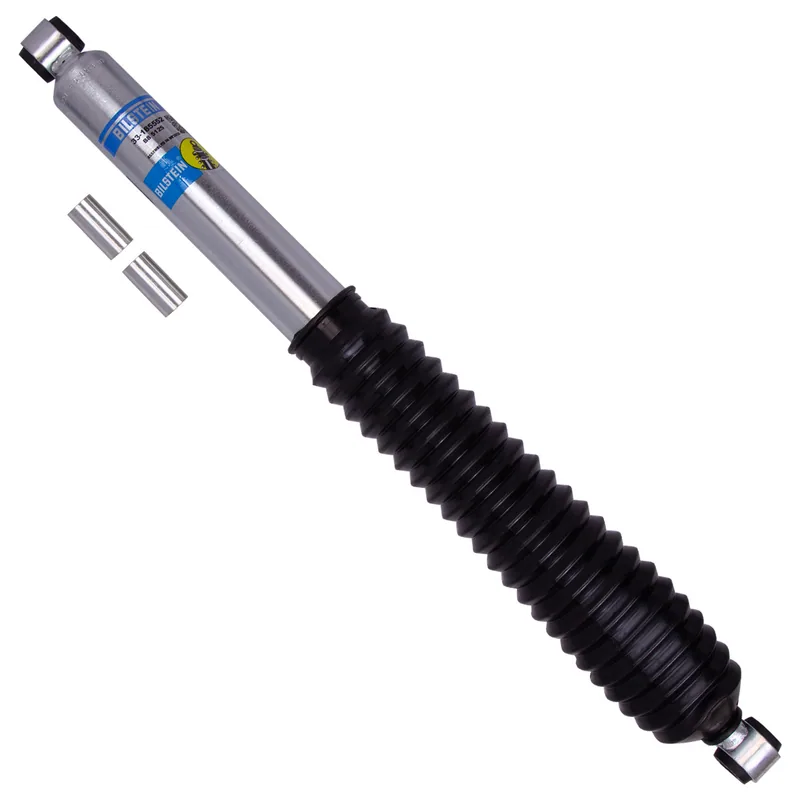

Bilstein 33-185552 B8 5125 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 72 × 11 × 11 cm, 2.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
23 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Toyota Land Cruiser | 1975–1983 | Base | Rear | All |
|
| Toyota Land Cruiser | 1968–1974 | Base | Rear | All |
|
| Toyota Land Cruiser | 1961–1967 | Base | Rear | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 25.91
- Collapsed Length (in)
- 15.91
- Extended Length (mm)
- 658.2
- Collapsed Length (mm)
- 404.0
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 5/8in
- Lower Mount Type
- Eye 5/8in
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 10.01
- Compression @0.52m/s
- 620
- Rebound @0.52m/s
- 2495
- Mount Type
- Eye-to-Eye
- Replacement Mounting Kit
- B4-KT1-Z236A00
- Valving Type
- Medium
- Stroke/travel Length (in) Rounded
- 10
- Collapsed Length (in) Incremental
- 15-15.99
- Extended Length (in) Incremental
- 25-25.99
Installation & warranty
Bilstein installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
