BetterB8 5100

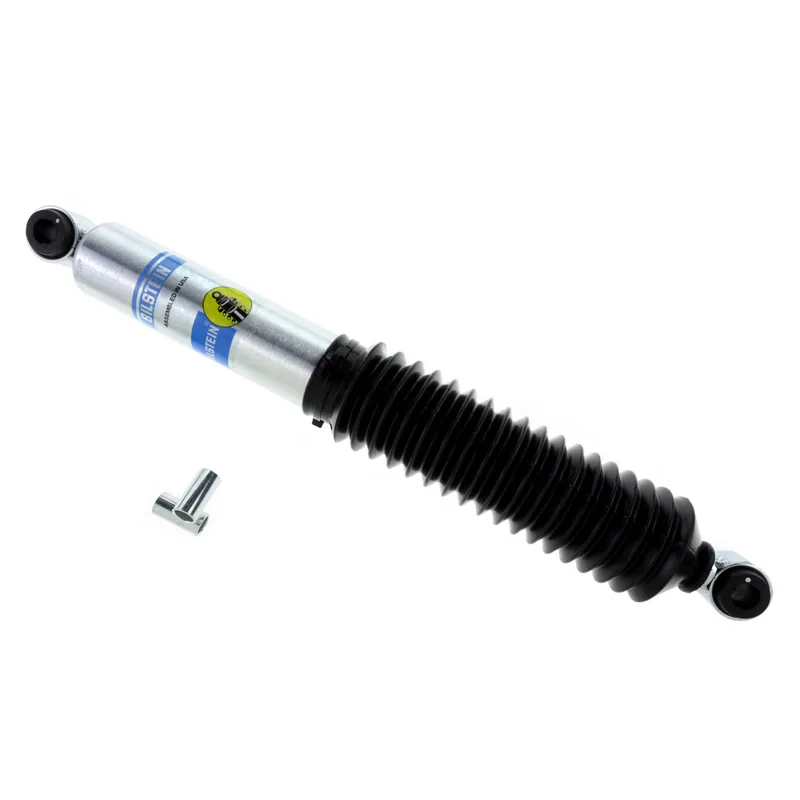

Bilstein 33-062518 B8 5125 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- Mexico
- Box
- Ships in Bilstein's own box (about 54 × 11 × 11 cm, 1.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
41 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Jeep CJ5 | 1975 | Base, Renegade | Front | All |
|
| Jeep CJ5 | 1975 | Base, Renegade | Rear | All |
|
| Jeep CJ5 | 1959–1974 | Base | Front | All |
|
| Jeep CJ5 | 1959–1974 | Base | Rear | All |
|
| Toyota Land Cruiser | 1975–1982 | Base | Front | All |
|
| Toyota Land Cruiser | 1960–1974 | Base | Front | All |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 18.53
- Collapsed Length (in)
- 12.07
- Extended Length (mm)
- 470.7
- Collapsed Length (mm)
- 306.5
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 5/8in
- Lower Mount Type
- Eye 5/8in
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- No
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 6.46
- Compression @0.52m/s
- 620
- Rebound @0.52m/s
- 2495
- Mount Type
- Eye-to-Eye
- Replacement Mounting Kit
- B4-KT1-Z236A00
- Valving Type
- Medium
- Stroke/travel Length (in) Rounded
- 6
- Collapsed Length (in) Incremental
- 12-12.99
- Extended Length (in) Incremental
- 18-18.99
Installation & warranty
Bilstein installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
