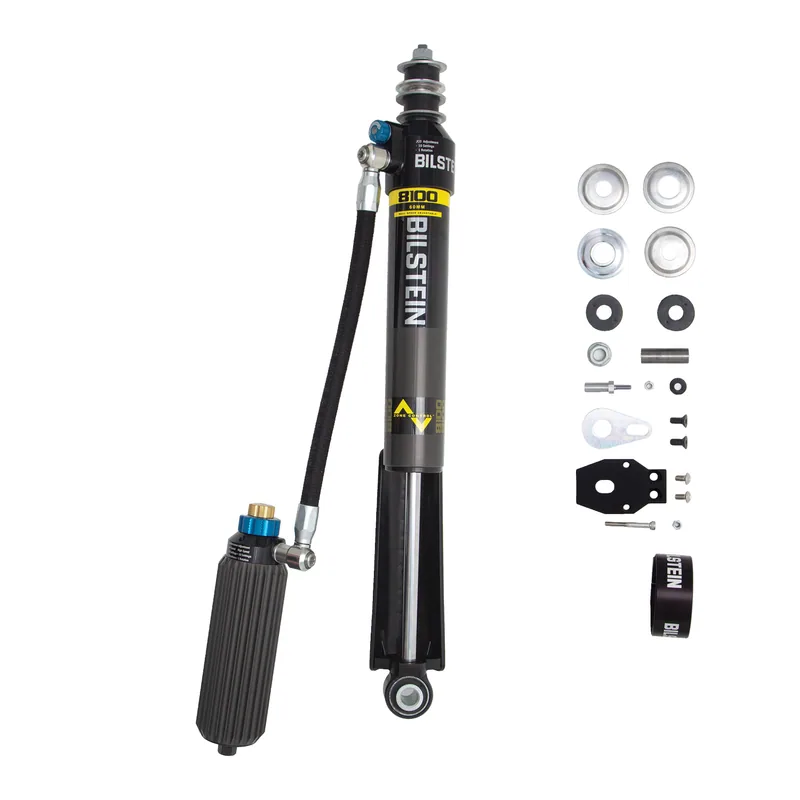

Bilstein 25-352016 B8 8100 Black Hawk Shock Absorber

Sold each

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

100% genuine Bilstein, from authorized North American distribution.

Fitment

30 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Toyota Tundra	Years	2025–2026	Submodels	1794 Edition, Capstone, Limited, Platinum, SR, SR5	Position	Rear right	Drive / body / engine	4WD	Notes	Fits Vehicles With 0-1" Rear Lift Without Rear Air Suspension Fits Vehicles With 0-1" Rear Lift Without Rear Air Suspension Without Adaptive Variable Suspension (AVS) Check which applies
Toyota Tundra	Years	2022–2024	Submodels	1794 Edition, Capstone, Limited, Platinum, SR, SR5	Position	Rear right	Drive / body / engine	4WD	Notes	Spring type: Front: Coil , Rear: Coil Fits Vehicles With 0-1" Rear Lift Without Rear Air Suspension Fits Vehicles With 0-1" Rear Lift Without Rear Air Suspension Without Adaptive Variable Suspension (AVS) Check which applies

As Bilstein publishes them.

Extended Length (in): 25.18
Collapsed Length (in): 16.78
Extended Length (mm): 639.5
Collapsed Length (mm): 426.3
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Upper Mount Type: Stem
Lower Mount Type: Eye 19.1mm
Body Design: 60mm ID Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: EVO Grey
Reservoir: Yes - Finned Aluminum
Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
Boot Included: No
Spring Seat Included: No
Body Material: Aluminum
