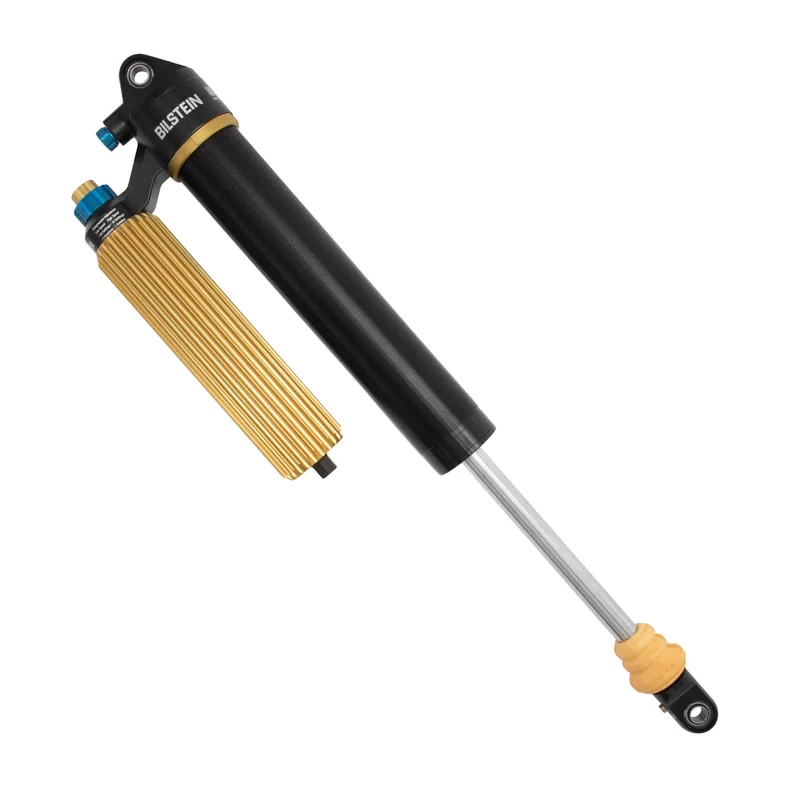

Bilstein 25-343854 M 9400 Black Hawk Shock Absorber
Sold each
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 104 × 17 × 11 cm, 15.5 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
A universal part with no vehicle list of its own. Tell us your vehicle and we'll confirm it suits.
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 38.50
- Collapsed Length (in)
- 24.50
- Extended Length (mm)
- 978.0
- Collapsed Length (mm)
- 622.2
- Piston Diameter
- 70mm
- Upper Mount Type
- Eye 5/8in
- Lower Mount Type
- Eye 5/8in
- Body Design
- Threaded Body (Coilover)
- Internal Design
- Monotube
- Finish
- Type III Hard Anodized
- Reservoir
- Yes
- Adjustable Damping
- 4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
- Boot Included
- No
- Spring Seat Included
- No
- Mount Type
- Eye-to-Eye
- Body Material
- Aluminum alloy
- Optional Reservoir Clamp
- N/A
- Shaft Diameter (mm)
- 25.4
- Spring Hardware
- 13-360054
- Service Type
- Racer Rebuildable
- Valving Type
- Adjustable
- Position Sensitive Damping
- Yes
- Dsa Seal Kit
- 13-348472
- Reservoir Seal Kit
- 13-337476
- Rod Guide Seal Kit
- 13-350369
- Wear Band Kit
- 13-347680
- Wiper Kit
- 13-350482
- Racing Type
- Off-Road
- Stroke/travel Length (in) Rounded
- 14
- Collapsed Length (in) Incremental
- 24-24.99
- Extended Length (in) Incremental
- 38-38.99
Installation & warranty
Bilstein general installation instructions (PDF)
Limited 90-Day Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
