BetterB8 5160

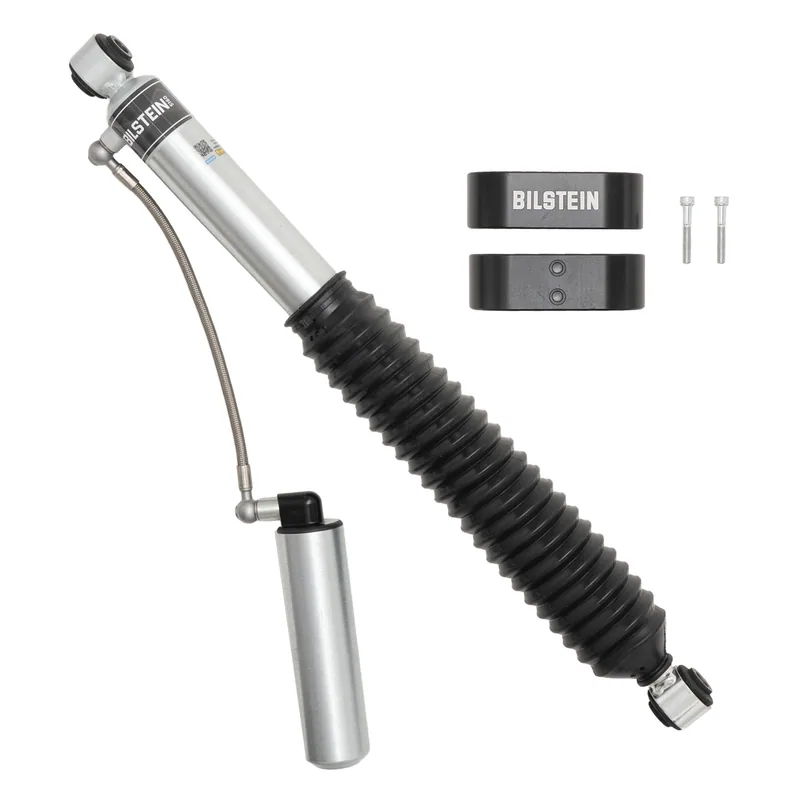

Bilstein 25-336689 B8 5160 Shock Absorber
Sold each · 2 per axle
Call (780) 473-2424
We reply to price requests within one business day.
Will it fit your vehicle?
- Country of origin
- United States
- Box
- Ships in Bilstein's own box (about 70 × 17 × 11 cm, 3.9 kg)
100% genuine Bilstein, from authorized North American distribution.
Fitment
28 vehicles, newest years first
| Vehicle | Years | Submodels | Position | Drive / body / engine | Notes |
|---|---|---|---|---|---|
| Chevrolet Colorado | 2023–2026 | LT, Trail Boss, WT, Z71 | Rear | All |
|
| GMC Canyon | 2023–2026 | AT4, Denali | Rear | All |
|
| GMC Canyon | 2023–2026 | Elevation | Rear | 4WD |
|
Specifications
As Bilstein publishes them.
- Extended Length (in)
- 24.89
- Collapsed Length (in)
- 15.25
- Extended Length (mm)
- 632.0
- Collapsed Length (mm)
- 387.3
- Body Diameter (od)
- 2.0 in.
- Piston Diameter
- 46mm
- Shaft Diameter
- 14mm
- Upper Mount Type
- Eye 14.1mm
- Lower Mount Type
- Eye 14.1mm
- Body Design
- Smooth Body (Non-Coilover)
- Internal Design
- Monotube
- Finish
- Zinc Plated
- Reservoir
- Yes
- Adjustable Damping
- Non-Adjustable
- Boot Included
- Black Bellows
- Spring Seat Included
- No
- Stroke/travel Length (in)
- 9.64
- Billet Reservoir Clamp Included
- Yes
Installation & warranty
Bilstein installation instructions (PDF)
Limited 2-Year Warranty · Warranty terms (PDF)
100% genuine Bilstein, from authorized North American distribution.
