BestB8 8100

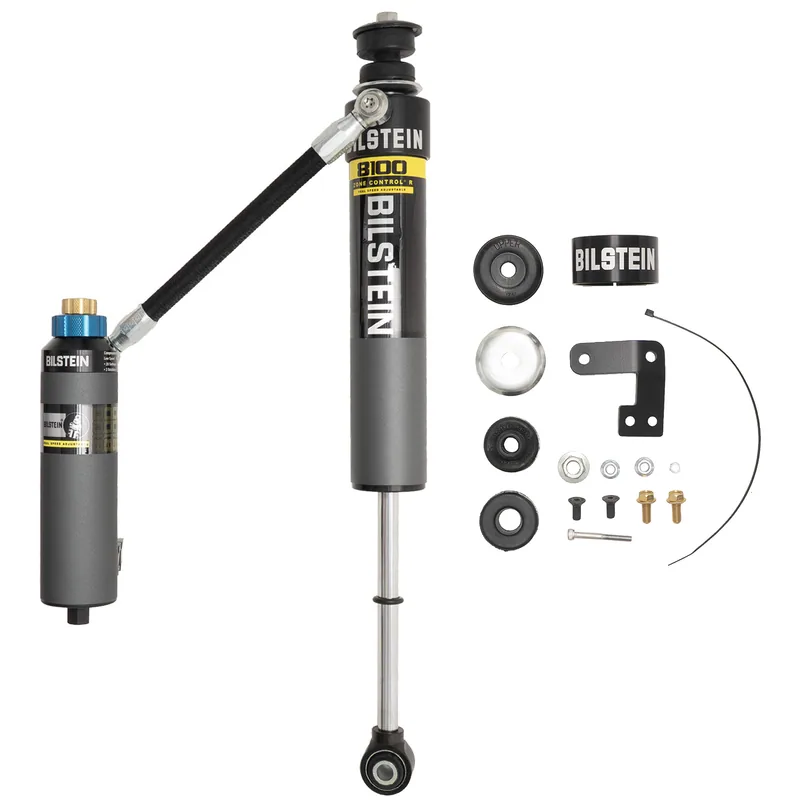

Bilstein 25-335903 B8 8100 ZoneControl R DSA Shock Absorber

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

25-302226 B8 8100 ZoneControl R Shock Absorber (Front left)
25-302240 B8 8100 ZoneControl R DSA Shock Absorber (Front left)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Country of origin: United States
Box: Ships in Bilstein's own box (about 65 × 20 × 14 cm, 10.3 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

54 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Ram 2500	Years	2026	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman, Warlock	Position	Front right	Drive / body / engine	4WD	Notes	Fits Vehicles With 2-2.5" Front Lift Bilstein B12 Special spring kit recommended - 53-317315 for Diesel engine or 53-317322 for Gas engine Check which applies
Ram 2500	Years	2023–2025	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Rebel, Tradesman	Position	Front right	Drive / body / engine	4WD	Notes	Fits Vehicles With 2-2.5" Front Lift Bilstein B12 Special spring kit recommended - 53-317315 for Diesel engine or 53-317322 for Gas engine Check which applies
Ram 2500	Years	2022	Submodels	Big Horn, Laramie, Limited, Limited Longhorn, Lone Star, Tradesman	Position	Front right	Drive / body / engine	4WD	Notes	Fits Vehicles With 2-2.5" Front Lift Bilstein B12 Special spring kit recommended - 53-317315 for Diesel engine or 53-317322 for Gas engine Check which applies
Ram 2500	Years	2021	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Tradesman	Position	Front right	Drive / body / engine	4WD	Notes	Fits Vehicles With 2-2.5" Front Lift Bilstein B12 Special spring kit recommended - 53-317315 for Diesel engine or 53-317322 for Gas engine Check which applies
Ram 2500	Years	2019–2020	Submodels	Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Tradesman	Position	Front right	Drive / body / engine	4WD	Notes	Fits Vehicles With 2-2.5" Front Lift Bilstein B12 Special spring kit recommended - 53-317315 for Diesel engine or 53-317322 for Gas engine Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 22.99
Collapsed Length (in): 14.65
Extended Length (mm): 584.0
Collapsed Length (mm): 372.2
Body Diameter (od): 2.65 in.
Piston Diameter: 60mm
Shaft Diameter: 18mm
Upper Mount Type: Stem
Lower Mount Type: Eye 14.1mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: EVO Grey
Reservoir: Yes
Adjustable Damping: Double Adjustable Compression with Click Adjuster Knobs
Boot Included: No
Spring Seat Included: No

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.

BILSTEIN is a trademark of thyssenkrupp Bilstein GmbH. Eskimo is an independent retailer.
