BetterB8 5160

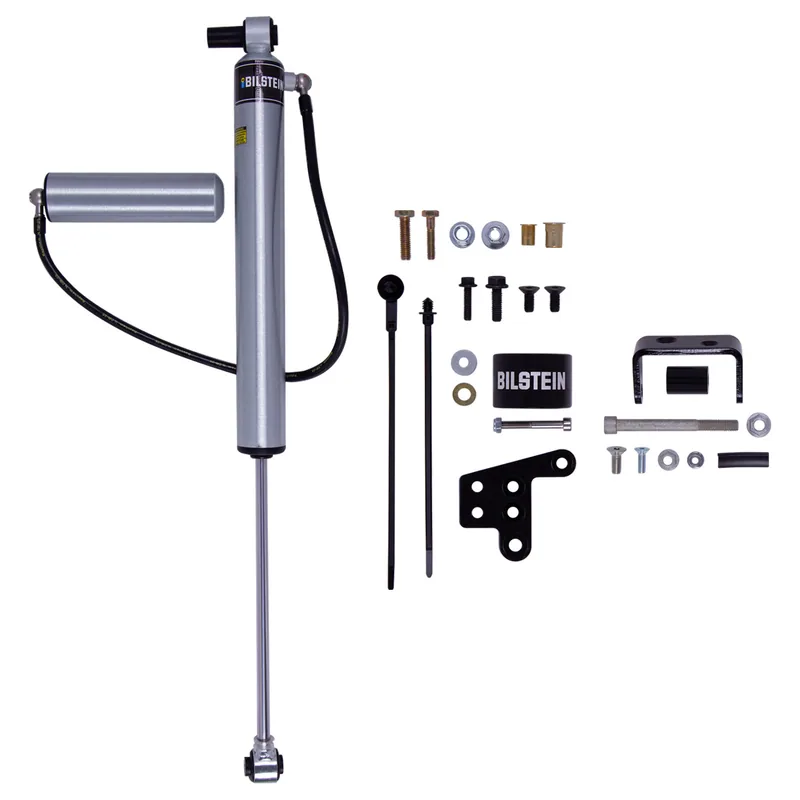

Bilstein 25-329964 B8 5160 Shock Absorber

Sold each

Call (780) 473-2424

We reply to price requests within one business day.

Will it fit your vehicle?

Matching part for the other side

25-329940 B8 5160 Shock Absorber (Front right)
25-329957 B8 5160 Shock Absorber (Front right)

Want it installed?Eskimo Auto Repair installs Bilstein suspension in Edmonton.

Replaces Bilstein: 25-305296
Country of origin: United States
Box: Ships in Bilstein's own box (about 81 × 17 × 11 cm, 4.9 kg)

100% genuine Bilstein, from authorized North American distribution.

Fitment

55 vehicles, newest years first

Vehicle	Years	Submodels	Position	Drive / body / engine	Notes
Jeep Gladiator	Years	2026	Submodels	Rubicon, Rubicon X, Sport, Sport S, Texas Trail, Willys	Position	Front left	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2025	Submodels	High Tide, NightHawk, Rubicon, Rubicon X, Sport, Sport S, Texas Trail, Willys	Position	Front left	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2024	Submodels	High Tide, Jeep Beach, NightHawk, Rubicon, Rubicon X, Sport, Sport S, Texas Trail, Willys	Position	Front left	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2023	Submodels	Freedom, High Altitude, Overland, Rubicon, Sport, Sport S, Texas Trail, Willys, Willys Sport	Position	Front left	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2022	Submodels	Altitude, High Altitude, Overland, Rubicon, Sport, Sport S, Texas Trail, Willys, Willys Sport	Position	Front left	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2021	Submodels	80th Anniversary, High Altitude, Overland, Rubicon, Sport, Sport S, Willys, Willys Sport	Position	Front left	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies
Jeep Gladiator	Years	2020	Submodels	Altitude, Launch Edition, Overland, Rubicon, Sport, Sport S	Position	Front left	Drive / body / engine	All	Notes	Fits Vehicles With 3-4.5" Front Lift Requires appropriate bump stop extensions and aftermarket driveshaft Check which applies

Specifications

As Bilstein publishes them.

Extended Length (in): 29.38
Collapsed Length (in): 17.56
Extended Length (mm): 746.2
Collapsed Length (mm): 446.0
Body Diameter (od): 2.0 in.
Piston Diameter: 46mm
Shaft Diameter: 14mm
Upper Mount Type: Eye 12.8mm
Lower Mount Type: Eye 12.8mm
Body Design: Smooth Body (Non-Coilover)
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: Yes
Adjustable Damping: Non-Adjustable
Boot Included: No
Spring Seat Included: No
Stroke/travel Length (in): 11.94
Replacement Mounting Kit: B4-KT1-Z419A00
Billet Reservoir Clamp Included: Yes

Installation & warranty

Bilstein installation instructions (PDF)

Limited 2-Year Warranty · Warranty terms (PDF)

100% genuine Bilstein, from authorized North American distribution.
